TJA1042T/1J is a high-speed CAN transceiver produced by NXP. TOPCHIP ELECTRONICS, which sells a full range of IC electronic components under NXP, will provide you with TJA1042T/1J technical parameters, functional features, application areas and pin diagrams.
Detailed technical parameters of TJA1042T/1J
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Transceiver
- Protocol:CANbus
- Number of Drivers/Receivers:1/1
- Duplex:Half
- Receiver Hysteresis:120 mV
- Data Rate:5Mbps
- Voltage - Supply:4.5V ~ 5.5V
- Operating Temperature:-40°C ~ 150°C
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SO
TJA1042T/1J features
1. High-speed transmission: supports CAN bus communication rate up to 1 Mbps, suitable for application scenarios requiring high-speed data transmission.
2. Anti-interference characteristics: It has good anti-electromagnetic interference (EMI) and anti-electrostatic discharge (ESD) characteristics, which improves the stability and reliability of the system.
3. Low-power design: Adopting low-power design helps reduce the power consumption of the entire system.
4. Operating temperature range: Supports a wide operating temperature range and is suitable for industrial and automotive applications.
5. Protection function: It has overload protection and short-circuit protection functions to protect the CAN bus communication system from damage.
TJA1042T/1J application fields
The TJA1042T/1J high-speed CAN transceiver is suitable for applications in a variety of fields, including but not limited to the following aspects:
1. Automotive electronics: used in automotive electronics applications such as automotive electronic control units (ECUs), vehicle network communications, and vehicle entertainment systems.
2. Industrial control: Suitable for industrial automation control systems, including industrial robots, PLC control, intelligent warehousing systems, etc.
3. Automotive communication: used in automotive communication applications such as vehicle diagnostic instruments, vehicle communication gateways, and vehicle-mounted data acquisition systems.
4. IoT equipment: Suitable for IoT application scenarios such as industrial IoT equipment, sensor nodes, and data collectors.

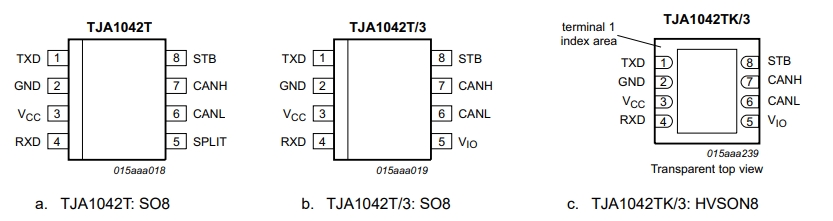

TJA1042T/1J pin diagram

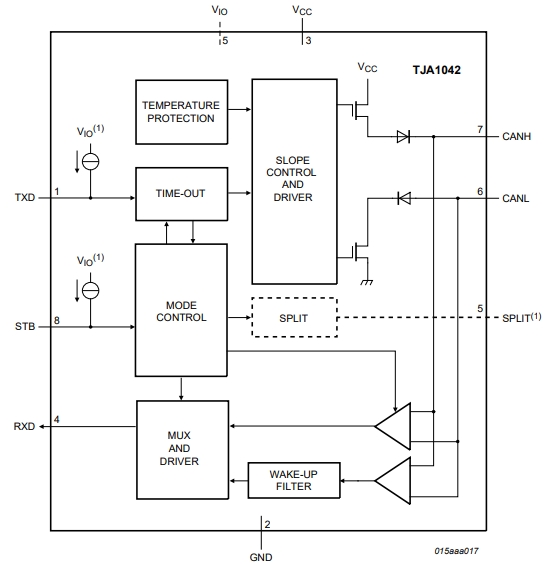

TJA1042T/1J schematic diagram
