FS32K144UAT0VLLT is a 32-bit automotive-grade microcontroller produced by NXP. TOPCHIP ELECTRONICS, which sells a full range of IC electronic components under NXP, will provide you with the technical parameters, characteristics, application fields and pin diagrams of FS32K144UAT0VLLT.
Detailed explanation of technical parameters of FS32K144UAT0VLLT
Manufacturer product model: FS32K144UAT0VLLT
Manufacturer: NXP USA Inc.
Description: IC MCU 32BIT 512KB FLASH 100LQFP
Product Family: Embedded - Microcontrollers
Packaging: Pallet
Series: S32K
Part status: active
Core processor: ARM? Cortex?-M4F
Kernel specification: 32-bit
Speed: 112MHz
Connectivity: CANbus, FlexIO, I2C, LINbus, SPI, UART/USART
Peripherals: POR, PWM, WDT
Number of I/Os: 89
Program storage capacity: 512KB (512K x 8)
Program memory type: Flash
EEPROM capacity: 4K x 8
RAM size: 64K x 8
Voltage-power supply (Vcc/Vdd): 2.7V ~ 5.5V
Data converter: A/D 16x12b SAR; D/A1x8b
Oscillator type: Internal
Working temperature: -40°C ~ 105°C (TA)
Installation type: surface mount type
Product packaging: 100-LQFP
FS32K144UAT0VLLT features:
1. High-performance processor: Using ARM Cortex-M4 core, it has high-performance processing capabilities and low power consumption.
2. Automotive-grade design: Meets the strict requirements of automotive-grade electronic components, with good temperature range, EMI/EMC characteristics and reliability.
3. Various peripheral interfaces: including CAN, LIN, SPI, I2C and other communication interfaces, as well as analog input/output interfaces, suitable for connecting various automotive sensors and actuators.
4. Safety functions: Supports automotive safety standards, including fault diagnosis, fault tolerance and safe start functions.
5. Rich memory: With Flash memory and SRAM, it supports the storage and execution of automotive applications.
FS32K144UAT0VLLT application fields:
The FS32K144UAT0VLLT microcontroller is suitable for a variety of automotive electronics applications, including but not limited to the following aspects:
1. Automotive control unit (ECU): used in automotive electronic control systems such as engine control units, transmission control units, and body control units.
2. Automotive communication gateway: used to connect various communication buses inside the vehicle (such as CAN, LIN) and external communication interfaces to achieve internal and external communication within the vehicle.
3. Car entertainment system: used in car audio, video and infotainment systems, including car entertainment controllers and peripheral device interfaces.
4. Automotive sensor interface: used to connect various automotive sensors, including temperature sensors, pressure sensors, position sensors, etc.

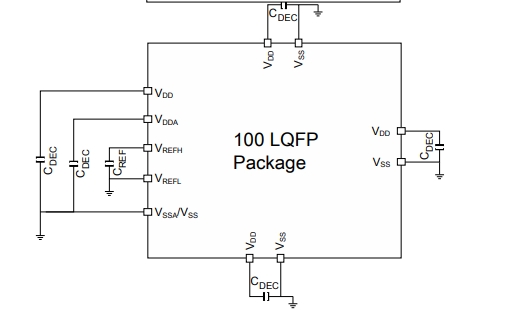

FS32K144UAT0VLLT pin diagram

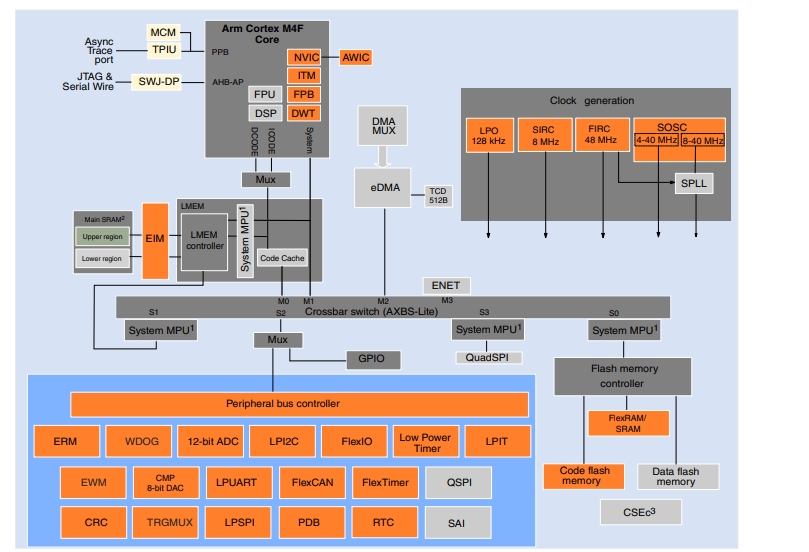

FS32K144UAT0VLLT schematic diagram
