BTS723GW technical parameters BTS723GW pin diagram BTS723GW functional block diagram

BTS723GW is an intelligent low-side power switch from Infineon. TOPCHIP ELECTRONICS, which sells Infineon's full range of IC electronic components as an agent, can provide you with BTS723GW technical parameters, functional features and application fields.

BTS723GW Chinese parameters

Model: BTS723GW

Manufacturer: Infineon

Type: Intelligent low-side power switch

Switch type: Universal

Number of outputs: 2

Ratio - Input:Output: 1:1

Output configuration: high-end

Output type: N channel

Interface: on/off

Voltage - Load: 7 V ~ 58 V

Voltage - Power Supply (Vcc/Vdd): Not required

Current - Output (max): 2.5A

Rds (On): 90 milliohms

Input type: non-inverting

characteristic:-

Fault protection: current limit (fixed), open load detection, over-temperature, over-voltage

Operating temperature: -40°C ~ 150°C (TJ)

Package/Casing: 14-SOIC (0.154", 3.90mm wide)

BTS723GW features

1. Low-side switch: used to control the low-side power switch in the circuit.

2. Integrated protection functions: including overload protection and short-circuit protection to protect the circuit from abnormal conditions.

3. Low static power consumption: has lower power consumption in inactive state.

4. Status monitoring and feedback: The output status can be monitored and corresponding feedback provided.

5. Thermal shutdown function: It can automatically shut down when the temperature exceeds the safe range to prevent overheating damage.

BTS723GW application fields

-Automotive electronics: used for motor control, light control, power window control, etc. in automotive systems.

-Industrial control: used for circuit control, mechanical equipment control, etc. in industrial automation systems.

-Consumer electronics: such as circuit control, power management, etc. in household appliances.

-Power tools: used for circuit control in power tools, such as electric drills, electric saws, etc.

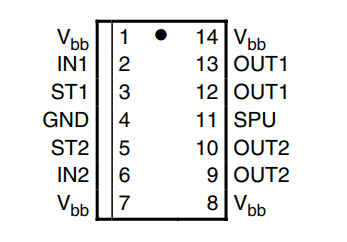

BTS723GW pin diagram

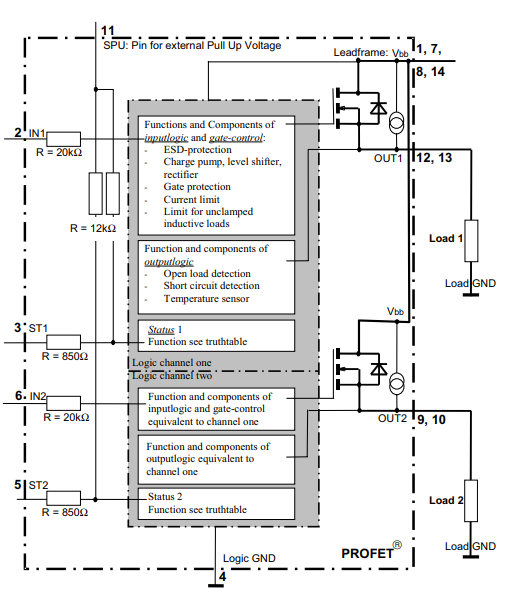

BTS723GW functional block diagram
