STMicroelectronics' model STM32F745IEK6 is an MCU microcontroller that uses a high-performance ARM® Cortex®-M7 32-bit RISC core and operates at a frequency of up to 216MHz. The Cortex®-M7 core features single floating point unit (SFPU) precision and supports all ARM® single-precision data processing instructions and data types. It also implements a comprehensive set of DSP instructions and a Memory Protection Unit (MPU) that enhances application security.
The STM32F745IEK6 contains high-speed embedded memory with up to 1 megabyte of flash memory, 320 kilobytes of SRAM (including 64 kilobytes of data TCM RAM for critical real-time data), 16 kilobytes of instruction TCM RAM (for critical real-time examples) program), 4 kilobytes of backup SRAM, and extensive enhanced I/O connected to two APB buses, two AHB buses, a 32-bit multi-AHB bus matrix, and multi-layer AXI interconnect supporting internal and external memory access and peripherals.
STM32F745IEK6 provides three 12-bit ADCs, two DACs, a low-power RTC, thirteen general-purpose 16-bit timers (including two PWM timers for motor control and a low-power timer available in stop mode device), two general-purpose 32-bit timers, and a true random number generator (RNG).
Functional features of STM32F745IEK6
1. Core: ARM® 32-bit Cortex®-M7 CPU with FPU, Adaptive Real-Time Accelerator (ART Accelerator™) and L1 cache: 4KB data cache and 4KB instruction cache, allowing 0 wait states from embedded flash and external memory , frequency up to 216MHz, MPU, 462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1) and DSP instructions;
2. Memory:
(1) Up to 1MB flash memory;
(2) 1024 bytes OTP memory;
(3) SRAM: 320KB (including 64KB data TCM RAM for critical real-time data) + 16KB instruction TCM RAM (for critical real-time routines) + 4KB backup SRAM (available in the lowest power consumption mode);
(4) Flexible external memory controller, supporting up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSSDR SDRAM, NOR/NAND memory.
3. Dual-mode four-way SPI;
4. LCD parallel interface, 8080/6800 mode;
5. LCD-FT controller with up to XGA resolution, dedicated Chrom ART accelerator™ for enhanced graphics content creation (DMA2D);
6. Clock, reset and power management:
(1)1.7 V to 3.6 V application power and I/O;
(2)POR, PDR, PVD and BOR;
(3) Dedicated USB power supply;
(4) 4 to 26 MHz crystal oscillator;
(5) Internal 16 MHz factory trimmed RC (1% accuracy);
(6) 32 kHz oscillator for RTC with calibration;
(7) Internal 32 kHz RC with calibration.
7. Low power consumption
(1) Sleep, stop and standby modes;
(2) VBAT power supply for RTC, 32×32-bit backup register + 4KB backup SRAM.
8. 3×12-bit, 2.4 MSPS ADC: up to 24 channels and 7.2 MSPS in triple interleave mode;
9. 2×12-bit D/A converter;
10. Up to 18 timers: up to 13 16-bit timers (one low-power 16-bit timer available in stop mode) and two 32-bit timers, each timer up to 4;
11. IC/OC/PWM or pulse counter and quadrature (incremental) encoder input, all 15 timers operating frequency up to 216 MHz.
Application fields of STM32F745IEK6
STM32F745IEK6 is a high-performance MCU microcontroller. Its main application areas are as follows:
1. Industrial automation: STM32F745IEK6 can be used in industrial automation control systems, including industrial robots, automated production lines, smart instruments, etc. It provides rich communication interfaces and real-time control capabilities, and can meet complex industrial control needs.
2. Consumer electronic products: STM32F745IEK6 can be used in consumer electronic products, such as smart home devices, smart wearable devices, game consoles, etc. Its powerful processing capabilities and rich peripherals can meet the needs of various consumer electronics products.
3. Medical electronics: In the field of medical electronics, STM32F745IEK6 can be used in medical equipment, health monitoring equipment, medical imaging systems, etc. It provides powerful processing capabilities and rich communication interfaces to support the design and development of various medical electronic devices.
Parameters of STM32F745IEK6
Brand: STMicroelectronics
Product Category: 32-bit MCU
Package: 176+25UFBGA(10x10)
Packaging: Pallet
Core processor: ARM Cortex-M7
Kernel specification: 32-bit
Speed: 216MHz
Connectivity: CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG
Peripherals: Undervoltage detection/reset, DMA, I2S, POR, PWM, WDT
Number of I/Os: 140
Program storage capacity: 512KB (512K x 8)
Program memory type: Flash
EEPROM capacity:-
RAM size: 320K x 8
Voltage-power supply (Vcc/Vdd): 1.7V ~ 3.6V
Data converter: A/D 24x12b; D/A 2x12b
Oscillator type: Internal
Working temperature: -40°C ~ 85°C(TA)
Installation type: surface mount type
Basic product number: STM32F745
HTSUS: 8542.31.0001
Product tag: General MCU

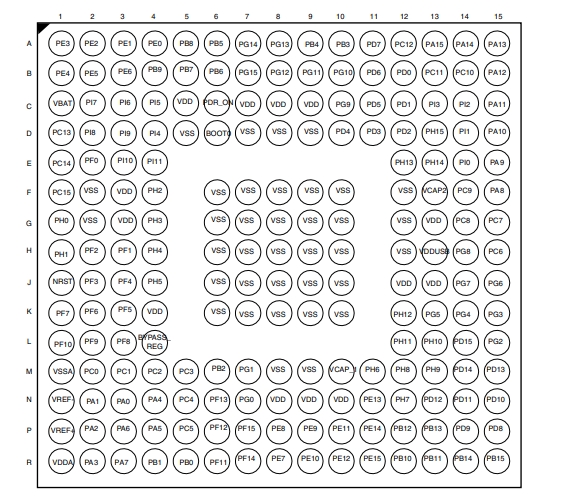

Pin diagram of STM32F745IEK6
Schematic diagram of STM32F745IEK6
