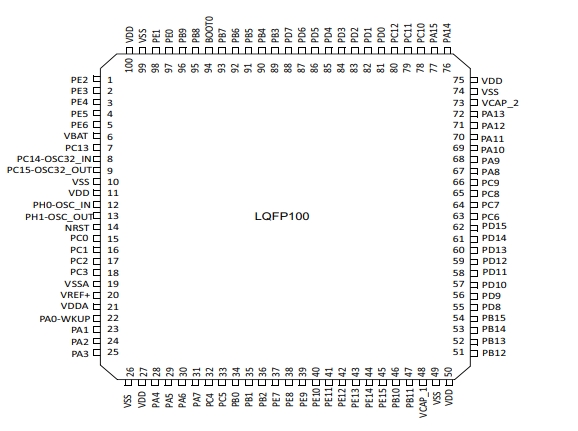

STM32F722VCT6 (ST 32-bit MCU) pin diagram and parameter introduction

2023-11-21

123

STMicroelectronics' model STM32F722VCT6 is an MCU microcontroller that uses a high-performance Arm® Cortex®-M7 32-bit RISC core and operates at a frequency of up to 216 MHz. The Cortex®-M7 core features single floating point unit (SFPU) precision and supports Arm® single-precision data processing instructions and data types. It also implements a comprehensive set of DSP instructions and a Memory Protection Unit (MPU) that enhances application security.

STM32F722VCT6

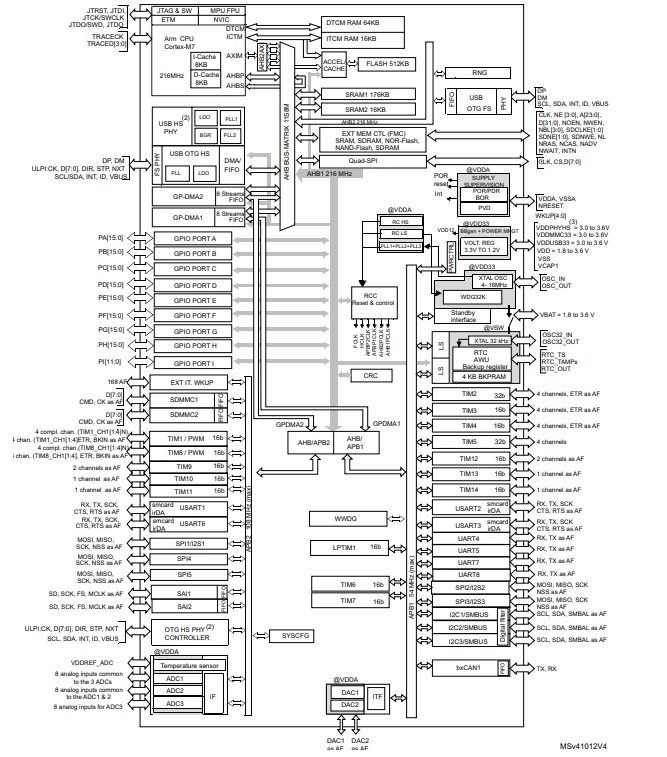

The STM32F722VCT6 contains high-speed embedded memory with up to 512KB Flash, 256KB SRAM (including 64KB data TCM RAM for critical real-time data), 16KB instruction TCM RAM (for critical real-time routines), and lowest power mode 4 KB of backup SRAM available, and a host of enhanced I/O and peripherals connected to two APB buses, two AHB buses, a 32-bit multi-AHB bus matrix, and multi-layer AXI interconnect supporting internal and external memory access .

STM32F722VCT6 provides three 12-bit ADCs, two DACs, a low-power RTC, thirteen general-purpose 16-bit timers (including two PWM timers for motor control), two general-purpose 32-bit timers, a true Random number generator (RNG).

Detailed explanation of parameters of STM32F722VCT6

Brand: STMicroelectronics

Product Category: 32-bit MCU

Package: 144-LQFP(20x20)

Core processor: ARM Cortex-M7

Kernel specification: 32-bit

Speed: 216MHz

Connectivity: CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB

Peripherals: Undervoltage detection/reset, DMA, I2S, POR, PWM, WDT

Number of I/Os: 114

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM capacity:-

RAM size: 256K x 8

Voltage-power supply (Vcc/Vdd): 1.7V ~ 3.6V

Data converter: A/D 16x12b; D/A 2x12b

Oscillator type: Internal

Working temperature: -40°C ~ 85°C(TA)

Installation type: surface mount type

Basic product number: STM32F732

HTSUS: 8542.31.0001

Product tag: General MCU

Functional features of STM32F722VCT6

1. High performance: Equipped with Cortex-M7 core, clocked at up to 216MHz, and equipped with a floating-point unit (FPU), providing powerful computing power and processing performance.

2. Multiple memories: It integrates a variety of memories, including 512KB flash memory and 256KB SRAM, which can meet the storage needs of complex applications and supports a variety of memory expansion interfaces.

3. Multiple communication interfaces: Supports multiple communication interfaces, including multiple SPI, I2C, USART, CAN and other interfaces, which can meet the connection needs of various peripheral devices.

4. Rich peripherals: Built-in multiple peripheral modules, including ADC, DAC, timer, PWM, etc., which can meet the peripheral needs of various applications.

5. Advanced security features: Supports hardware encryption and secure boot functions, providing advanced security protection to protect the system from malicious attacks.

6. Low-power design: It adopts advanced low-power design and supports multiple low-power modes, which can achieve a good balance between power consumption and performance.

Application fields of STM32F722VCT6

STM32F722VCT6 is a high-performance Arm Cortex-M7 core microcontroller. Its main application areas are as follows:

1. Industrial control applications: STM32F722VCT6 can be used in industrial automation fields, such as industrial robot control, process control, sensor data collection and data processing, motor control, etc.

2. Consumer electronics products: including smart home systems, smart wearable devices, handheld devices, home appliance control and other fields.

3. Medical equipment: STM32F722VCT6 can be used in medical equipment, including medical monitoring instruments, medical image processing systems, vital signs monitoring equipment, etc.

4. Communication equipment: used in wireless communication base station controllers, data terminal equipment, wireless LAN routers, Internet of Things equipment, etc.
