STM32F767VGT6 (ST high-performance 32-bit MCU) pin diagram and parameter introduction

STMicroelectronics' model STM32F767VGT6 is an MCU microcontroller that uses a high-performance Arm® Cortex®-M7 32-bit RISC core and operates at a frequency of up to 216MHz. The Cortex®-M7 core features a floating-point unit (FPU) that supports Arm® double-precision and single-precision data processing instructions and data types. It also implements a comprehensive set of DSP instructions and a Memory Protection Unit (MPU) that enhances application security.

The STM32F767VGT6 contains high-speed embedded memory with up to 2Mbytes of flash memory, 512KB SRAM (including 128KB data TCM RAM for critical real-time data), 16KB instruction TCM RAM (for critical real-time routines), 4 KB backup SRAM, and connectivity A host of enhanced I/O and peripherals to two APB buses, two AHB buses, a 32-bit multi-AHB bus matrix and multi-layer AXI interconnect supporting internal and external memory access.

STM32F767VGT6 each provides three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers (including two PWM timers for motor control), two general-purpose 32-bit timers, a True Random Number Generator (RNG).

Functional features of STM32F767VGT6

1. High performance: It is equipped with an ARM Cortex-M7 core with a main frequency of up to 216MHz, equipped with up to 2M Flash memory and 512KB SRAM, thus providing superior performance and responsiveness.

2. Rich peripheral interfaces: Rich built-in peripheral interfaces, including multiple universal timers, high-speed USB interfaces, multiple serial communication interfaces (such as SPI, I2C, UART, etc.), Ethernet interfaces, and analog and Digital peripheral interfaces, etc., can meet the needs of various application scenarios.

3. Low power consumption features: Supports multiple low power consumption modes, including shutdown mode, standby mode and hibernation mode, to save energy and extend battery life.

4. Security improvement: It has hardware-accelerated encryption and decryption functions, including algorithms such as AES, 3DES, SHA and MD5, which can provide guarantees for data security and integrity.

5. Highly integrated: It integrates high-performance analog-to-digital converters (ADC), digital-to-analog converters (DAC), and various sensor interfaces, making it suitable for a wide range of application fields, such as industrial control, smart home, Automotive electronics, etc.

Application fields of STM32F767VGT6

STM32F767VGT6 is a high-performance ARM Cortex-M7 core microcontroller with rich peripherals and memory configurations. Its main application areas are as follows:

1. Industrial control: This microcontroller is suitable for industrial automation control systems, robot control, smart grid monitoring and factory automation.

2. Medical equipment: STM32F767VGT6 can be used in medical equipment, health monitoring equipment, medical image processing and medical information systems.

3. Consumer electronic products: such as smart home devices, smart wearable devices, smart wearable devices, wearable products and consumer electronic devices.

4. Communication equipment: It can be used in communication base stations, security access control systems, intelligent equipment and industrial Internet of Things equipment, etc.

Parameters of STM32F767VGT6

Brand: STMicroelectronics

Product Category: 32-bit MCU

Package: 100-LQFP(14x14)

Packaging: Pallet

Core processor: ARM Cortex-M7

Kernel specification: 32-bit

Speed: 216MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG

Peripherals: Undervoltage detection/reset, DMA, I2S, LCD, POR, PWM, WDT

Number of I/Os: 82

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity:-

RAM size: 512K x 8

Voltage-power supply (Vcc/Vdd): 1.7V ~ 3.6V

Data converter: A/D 16x12b; D/A 2x12b

Oscillator type: Internal

Working temperature: -40°C ~ 85°C(TA)

Installation type: surface mount type

Basic product number: STM32F767

HTSUS: 8542.31.0001

Product tag: General MCU

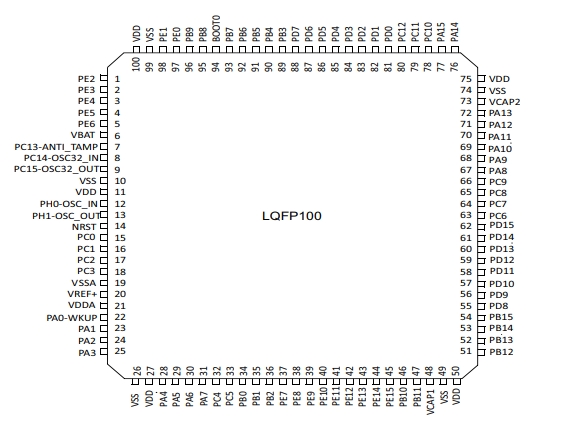

Pin diagram of STM32F767VGT6

Schematic diagram of STM32F767VGT6

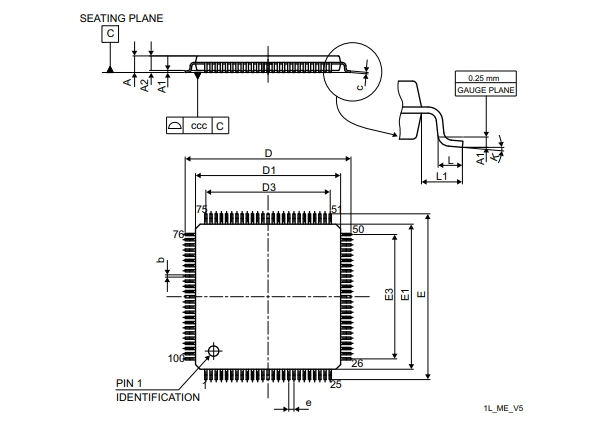

Package diagram of STM32F767VGT6

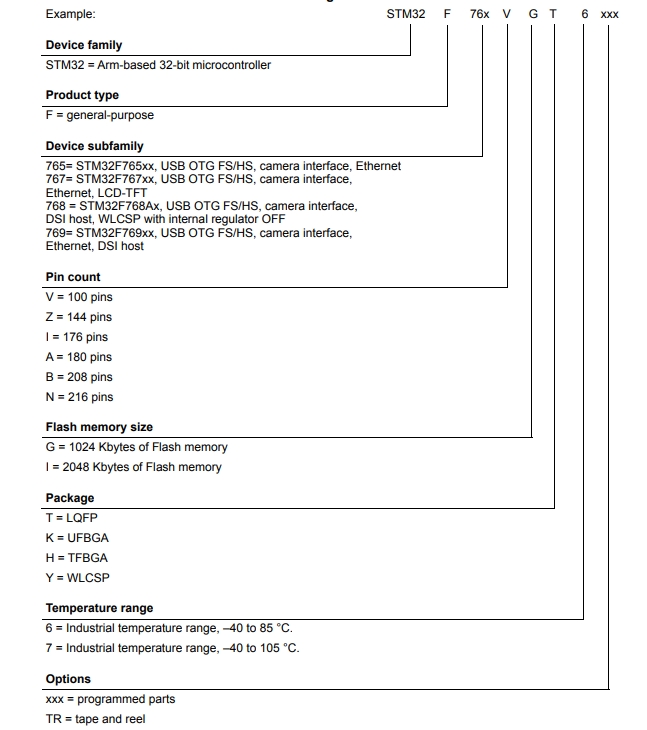

STM32F767VGT6 material number explanation diagram
