This blog mainly explains the functional features, parameters, application fields and pin diagrams of STM32F100C8T6B.
STMicroelectronics' model STM32F100C8T6B (click to buy now) is an MCU microcontroller that integrates a high-performance ARM® Cortex®-M3 32-bit RISC core with an operating frequency of 24MHz and high-speed embedded memory (flash memory up to 128 Kbytes, SRAM up to 8 Kbytes), as well as a wide range of enhanced peripherals and I/O connected to both APB buses.
All devices offer standard communication interfaces (up to two i2c, two spi, one HDMI CEC and up to three usart), a 12-bit ADC, two 12-bit DACs, up to six general-purpose 16-bit timers and an advanced control PWM timer.
The STM32F100C8T6B low- and medium-density devices operate over the -40 to +85°C and -40 to +105°C temperature ranges from 2.0 to 3.6V power supplies.
Functional features of STM32F100C8T6B
1. High performance: STM32F100C8T6B uses the ARM Cortex-M3 core, with a main frequency of up to 24MHz. It has high-performance computing capabilities and is suitable for processing complex control tasks.
2. Rich peripherals: STM32F100C8T6B integrates a variety of peripherals, including multiple general-purpose timers, serial communication interfaces, analog-to-digital converters, digital-to-analog converters, etc., to meet diverse application needs.
3. Multiple interfaces: STM32F100C8T6B supports multiple communication interfaces, such as SPI, I2C, USART, etc., to facilitate data communication and control with external devices.
4. Low-power design: STM32F100C8T6B adopts advanced low-power design, which can reduce power consumption while maintaining high performance and extend the service life of the device.
5. Rich development resources: STMicroelectronics provides rich development resources for STM32F100C8T6B, including development tools, reference designs, sample codes, etc., providing convenience for developers.
Application fields of STM32F100C8T6B
STM32F100C8T6B is a microcontroller based on the ARM Cortex-M3 core. It has rich peripherals and functional features. Its main application areas are as follows:
1. Industrial control: STM32F100C8T6B can be used in industrial automation control systems, mechanical equipment control, smart sensors, data collection and monitoring and other fields. Its high performance and stability make it an ideal choice for industrial control fields.
2. Consumer electronic products: STM32F100C8T6B is suitable for consumer electronic products, such as smart home equipment, electronic toys, smart wearable devices, health monitoring equipment, etc. Its low power consumption characteristics and rich peripheral functions can meet the needs of various consumer electronic products.
3. Medical equipment: STM32F100C8T6B can be used in the field of medical equipment, such as blood pressure monitors, blood glucose meters, ventilators and other medical equipment. Its high-performance processing capabilities and reliable performance can ensure the accuracy and stability of medical equipment.
4. Communication equipment: STM32F100C8T6B can also be used in the field of communication equipment, such as routers, wireless data transmission equipment, network communication modules, etc.
Parameters of STM32F100C8T6B
Brand: STMicroelectronics
Product Category: 32-bit MCU
Package: LQFP-48_7x7x05P
Packaging: Pallet
Product application: general MCU
Core processor: ARMCortex-M3
Kernel specification: 32-bit
Speed: 24MHz
Connectivity: I2C, IrDA, LINbus, SPI, UART/USART
Peripherals: DMA, PDR, POR, PVD, PWM, temperature sensor, WDT
Number of I/Os: 37
Program storage capacity: 64KB (64Kx8)
Program memory type: Flash
EEPROM capacity:-
RAM size: 8Kx8
Voltage-power supply (Vcc/Vdd): 2V~3.6V
Data converter: A/D10x12b; D/A2x12b
Oscillator type: Internal
Working temperature: -40°C~85°C(TA)
Installation type: surface mount type

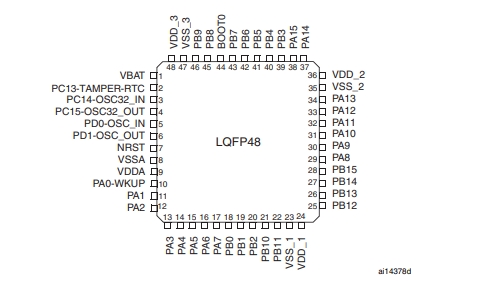

Pin diagram of STM32F100C8T6B

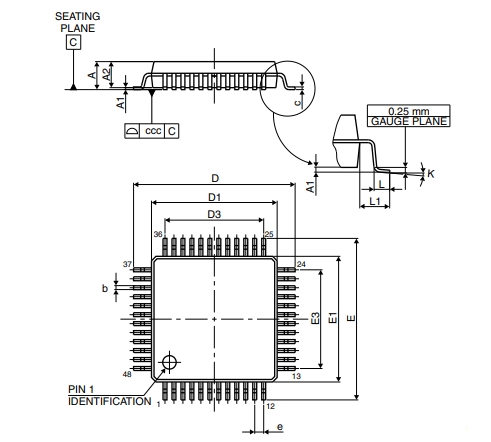

Package diagram of STM32F100C8T6B
