This blog mainly explains the functional features, parameters, application areas and pin diagrams of STM32F103VGT6.
STMicroelectronics’ model STM32F103VGT6 (click to buy now) is an MCU microcontroller that integrates a high-performance ARM® Cortex®-M3 32-bit RISC core operating at 72 MHz, high-speed embedded memory (up to 1 Mbyte of Flash and up to 96 Kbytes of SRAM), as well as a wide range of enhanced I/O and peripherals connected to two APB buses. All devices offer 3 12-bit adcs, 10 general-purpose 16-bit timers and 2 PWM timers, as well as standard and advanced communication interfaces: up to 2 i2c, 3 spi, 2 i2s, 1 SDIO, 5 usart, a USB and a CAN.
The STM32F103VGT6 density performance line series operates over the -40 to +105°C temperature range from 2.0 to 3.6 V supplies. A comprehensive set of power-saving modes allows the design of low-power applications.
Functional features of STM32F103VGT6
1. ARM Cortex-M3 core: STM32F103VGT6 uses the ARM Cortex-M3 core, which has excellent performance and energy efficiency ratio. The Cortex-M3 core has high computing performance and low power consumption, and is suitable for achieving high-performance real-time processing in various applications.
2. High performance: The main frequency of STM32F103VGT6 can reach 72MHz, providing fast computing power and response speed, which can meet applications with high real-time requirements.
3. Rich peripheral interfaces: STM32F103VGT6 integrates a variety of general and special peripheral interfaces, including multiple general timers, universal synchronous asynchronous receivers and transmitters, analog and digital converters, Ethernet controllers, etc., to meet the needs of a variety of applications Peripheral connection requirements.
4. Rich memory: STM32F103VGT6 integrates 1MB flash memory and 96KB static RAM, which can support data storage and program operation to meet the needs of larger-scale applications.
5. Rich communication interfaces: STM32F103VGT6 supports a variety of communication interfaces, including SPI, I2C, USART, etc., to facilitate communication and data exchange with external devices.
6. Low power consumption characteristics: STM32F103VGT6 has a variety of low power consumption modes, which can reduce the overall power consumption of the system and extend battery life. It is suitable for application in mobile devices and battery-powered systems.
Application fields of STM32F103VGT6
As a powerful embedded microcontroller, STM32F103VGT6 has the following main application areas:
1. Industrial control: STM32F103VGT6 can be used in industrial control systems, such as industrial automation, PLC, etc. Its stable performance and rich peripheral support make it perform well in engineering control.
2. Automotive electronics: STM32F103VGT6 is also widely used in automotive electronic systems, including engine control units (ECU), body electronics, instrument panels, vehicle entertainment systems and other fields.
3. Smart home: In the field of smart home, STM32F103VGT6 can be used to control various smart devices, such as smart lighting control, smart door locks, smart home appliances, etc.
4. Medical equipment: STM32F103VGT6 is also suitable for various medical equipment, such as medical monitors, medical imaging equipment, etc., and can provide reliable data processing and control functions.
5. Consumer electronics: Among consumer electronics products, STM32F103VGT6 can be used in control systems for smartphones, tablets, digital cameras, game consoles and other products.
Parameters of STM32F103VGT6
Brand: STMicroelectronics
Product Category: 32-bit MCU
Moisture Sensitivity Level (MSL): 3 (168 hours)
Series: STM32F1
Is it lead-free: Yes
Package/casing: LQFP100_14X14MM
Working temperature: -40℃~+85℃
CPU core: ARM Cortex-M3
Core size: 32-bit
Main frequency speed (Max): 72MHz
Number of I/Os: 80
Program space capacity: 1MB (1Mx8)
Program space type: flash memory
Working voltage (range): 2V~3.6V
Connectivity: CAN, I²C, IrDA, LIN, SPI, UART/USART, USB
Memory RAM capacity: 96Kx8
EEPROM capacity:-

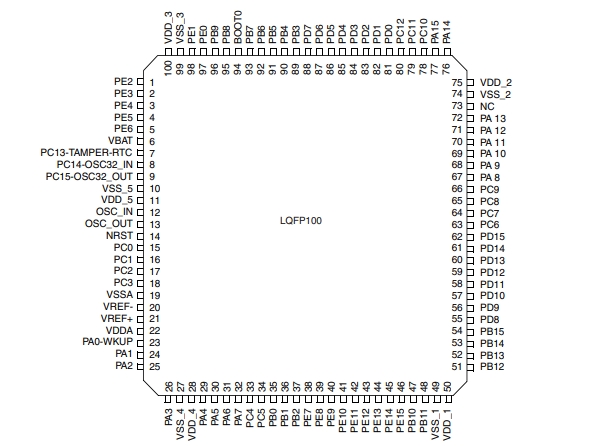

Pin diagram of STM32F103VGT6

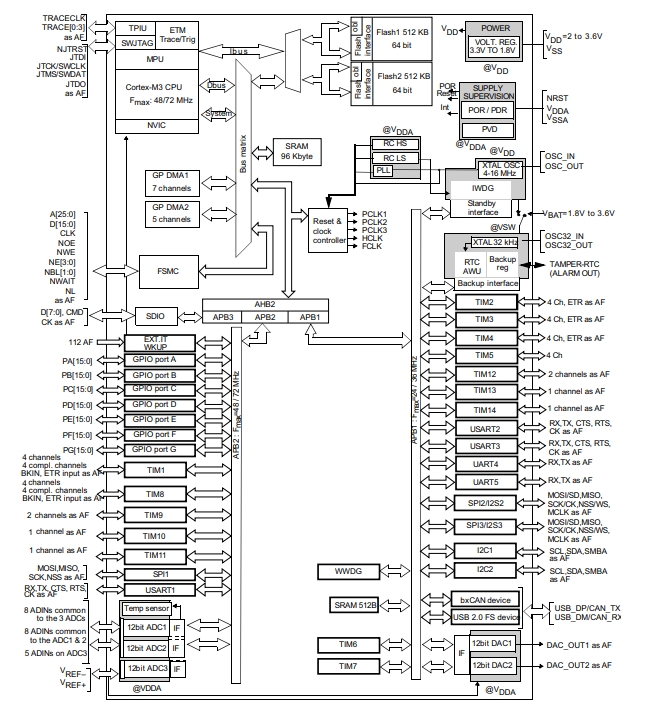

Schematic diagram of STM32F103VGT6
