STMicroelectronics' model STM32F031F6P6TR is a 32-bit MCU microcontroller that contains a high-performance ARM® Cortex®-M0 32-bit RISC core and operates at 48MHz. High-speed embedded memory (up to 32 Kbytes of Flash and 4K bytes of SRAM), and a wide range of enhanced peripherals and I/O. STM32F031F6P6TR provides standard communication interfaces (one I2C, one SPI/I2S, one USART), a 12-bit ADC, up to five general-purpose 16-bit timers, a 32-bit timer, and an advanced control PWM timer.
The operating temperature range of the STM32F031x4/x6 microcontrollers is -40 to +85 °C and -40 to +105 °C, and the operating voltage range is 2.0 to 3.6V. A complete set of power saving modes suitable for low power application designs.
Functional features of STM32F031F6P6TR
1. High-performance processing capability: STM32F031F6P6TR uses the ARM Cortex-M0 core with a working frequency of up to 48MHz, which can achieve fast data processing and response. It provides a balance of high performance and low power consumption and is suitable for a variety of application scenarios.
2. Rich peripheral interfaces: STM32F031F6P6TR is equipped with a variety of peripheral interfaces, including multiple general-purpose IO pins, SPI, I2C, USART and other serial communication interfaces, as well as multiple timers and PWM output pins, to meet different needs Application requirements.
3. Rich memory: STM32F031F6P6TR has built-in 32KB Flash memory and 4KB SRAM, which can be used to store code and data. At the same time, it also supports external memory expansion, such as serial flash memory, EEPROM, etc.
4. Multiple interrupt processing mechanisms: STM32F031F6P6TR supports multiple interrupt triggering methods, including external interrupts, timer interrupts, and serial port interrupts. These interrupt mechanisms can improve the real-time performance and reliability of the system.
5. Low power consumption design: STM32F031F6P6TR has low power consumption characteristics and supports a variety of low power consumption modes to meet application scenarios with high battery life and energy consumption requirements.
6. Powerful clock and timing control: STM32F031F6P6TR has flexible clock and timing control functions that can be configured according to specific application requirements to achieve good performance and power consumption balance.
7. Complete development tool support: STMicroelectronics provides a complete development tool chain for STM32F031F6P6TR, including development environments and debugging tools based on Keil, IAR, GCC, etc. In addition, a wealth of software libraries and sample codes are provided to simplify the development process.
8. High reliability and security: STM32F031F6P6TR has a variety of hardware and software mechanisms to improve the reliability and security of the system, such as CRC check, independent watchdog, hardware encryption, etc.
Application fields of STM32F031F6P6TR
STM32F031F6P6TR is a 32-bit microcontroller. Its main application areas are as follows:
1. Industrial automation: STM32F031F6P6TR can be used in factory automation, process control, sensor data collection and monitoring systems and other applications. It has high performance and real-time performance and is suitable for handling complex control algorithms and communication protocols.
2. Smart home: STM32F031F6P6TR has a wide range of applications in the smart home field, such as intelligent lighting control, home security systems, temperature and humidity monitoring, smart sockets, etc. It can be integrated with various sensors and actuators to achieve remote control and monitoring functions.
3. Intelligent transportation: STM32F031F6P6TR can be used in control systems of cars, ships and other means of transportation. It can process vehicle sensor data, execute vehicle control algorithms, and communicate with other on-board devices, such as GPS navigation systems, airbag systems, etc.
4. Medical equipment: STM32F031F6P6TR is widely used in medical equipment, such as blood pressure monitors, blood glucose meters, heart monitors, etc. It has the characteristics of low power consumption and high precision, and is very suitable for the control and data processing of electronic medical equipment.
5. Consumer electronics: STM32F031F6P6TR can be used in various consumer electronics products, such as smartphones, tablets, smart watches, etc. It has high processing power and scalability and can support complex applications and graphical interfaces.
6. Internet of Things devices: STM32F031F6P6TR is an ideal choice for Internet of Things applications and can be used for smart gateways, data collection and communication control of various connected devices and sensors. It features low power consumption and high integration, making it suitable for long-running IoT applications.
Parameters of STM32F031F6P6TR
Brand: STMicroelectronics
Product Category: 32-bit MCU
Program memory type: Flash
RAM size: 4K x 8
Package: 20-TSSOP
Voltage-power supply (Vcc/Vdd): 2V ~ 3.6V
Product tag: General MCU
Data converter: A/D 12x12b
Core processor: ARM Cortex-M0
Oscillator type: Internal
Kernel specification: 32-bit
Working temperature: -40°C ~ 85°C(TA)
Speed: 48MHz
Installation type: surface mount type
Connectivity: I2C, IrDA, LINbus, SPI, UART/USART
Basic product number: STM32
Peripherals: DMA, I2S, POR, PWM, WDT
Program storage capacity: 32KB (32K x 8)
Number of I/Os: 15

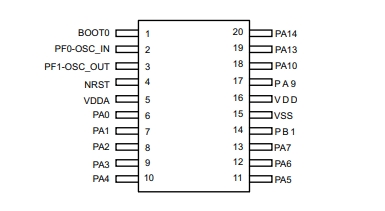

Pin diagram of STM32F031F6P6TR

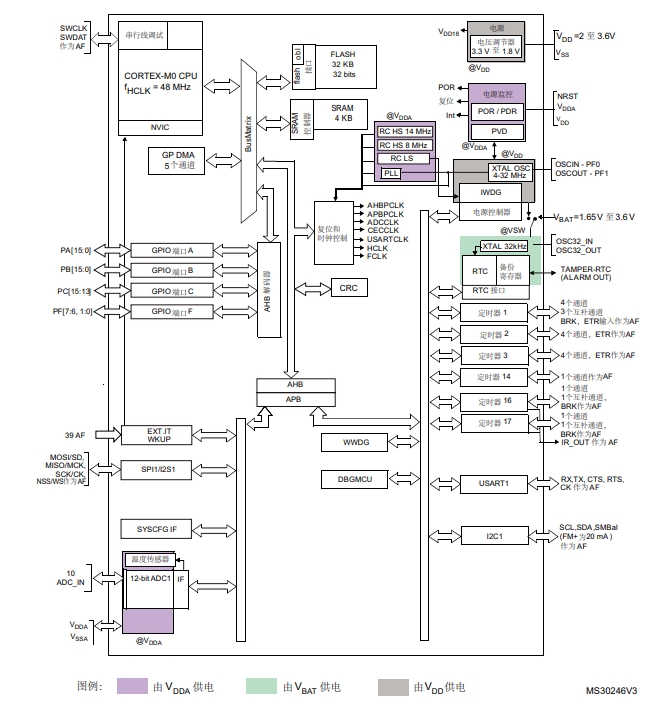

Schematic diagram of STM32F031F6P6TR

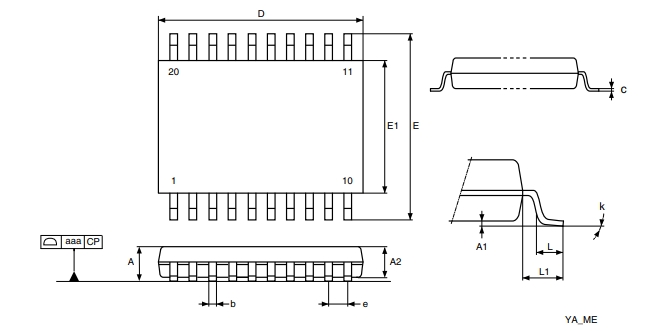

Package diagram of STM32F031F6P6TR
