Detailed explanation of MMPF0100NP technical parameters, functional features, application fields, and schematic diagram

MMPF0100NPAZES is a highly integrated power management IC from NXP Semiconductors, mainly used in embedded systems and portable devices. The chip has a variety of power management functions, including battery charge management, DC-DC conversion, power selection and management, etc. SMIC Juneng, which sells a full range of IC electronic components under NXP, will provide you with detailed technical parameters, functional features, application areas, pin diagrams and schematics of MMPF0100NPAZES.

MMPF0100NPAZES

Detailed explanation of technical parameters of MMPF0100NPAZES

Brand: NXP Semiconductors

Product Series: Power Management IC - Professional Power Management (PMIC)

Series: Automotive, AEC-Q100

Part status: active

Application: Converter, i.MX6

Voltage-input: 2.8V ~ 4.5V

Number of outputs: 12

Voltage-Output: Multiple

Working temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface mount, wettable flanks

Product package: 56-VFQFN

MMPF0100NPAZES Functional Features

- Multi-channel power management: Manage and control multiple power channels, such as core voltage, IO voltage, memory voltage, etc.

- Low power mode: Support low power mode to save energy.

- Temperature monitoring and protection: Integrated temperature monitoring and protection functions to ensure system protection in case of temperature over-limit.

- Battery management: Supports battery charging management and battery status monitoring.

- Reset control: Provides reset signal and reset control function to ensure that the system can resume normal operation under abnormal conditions.

MMPF0100NPAZES application fields

- Smartphones and Tablets: For managing multiple power channels in the device, battery management, and more.

- Portable consumer electronics: such as smart watches, wearable devices, portable medical devices, etc.

- Industrial automation: used for power management of various industrial equipment, robots, control systems, etc.

- IoT devices: used for various IoT nodes, sensor devices, smart home devices, etc.

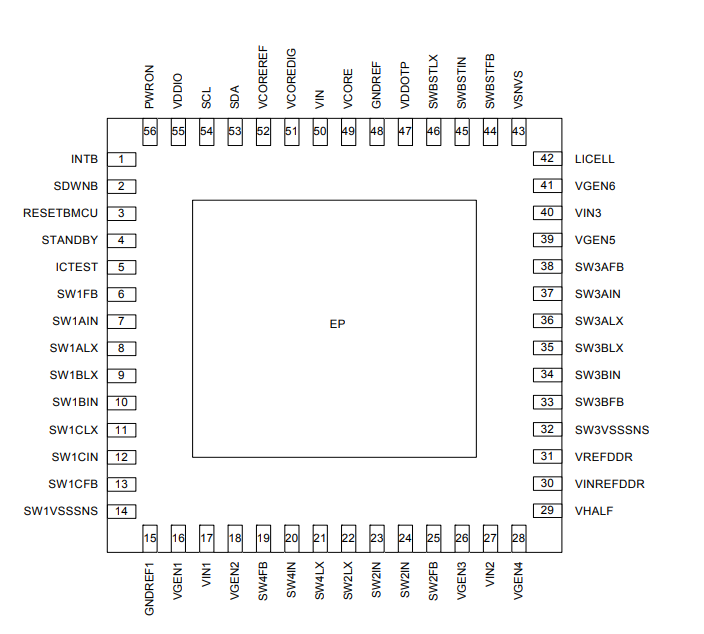

MMPF0100NPAZES pin diagram

MMPF0100NPAZES pin diagram

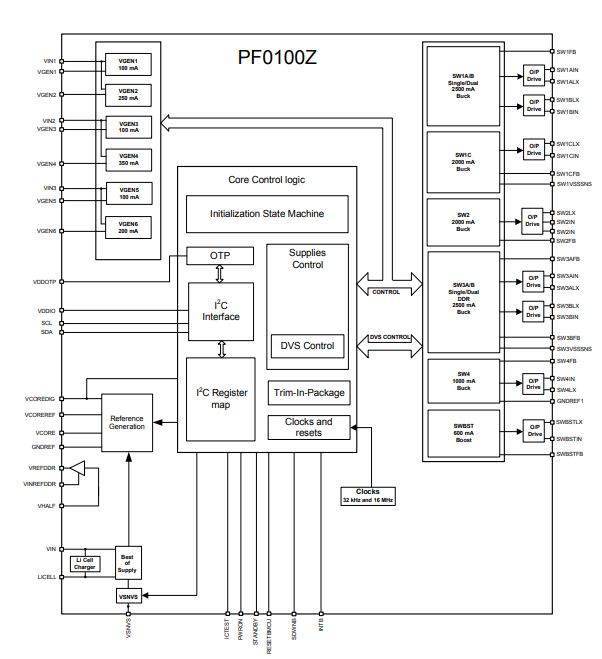

MMPF0100NPAZES schematic diagram

MMPF0100NPAZES schematic diagram
