STM32F030CCT6TR (ST 32-bit MCU) pin diagram and parameter introduction

STMicroelectronics’model STM32F030CCT6TR is a 32-bit MCU microcontroller that integrates a high-performance Arm® Cortex®-M0 32-bit RISC core operating at 48MHz, high-speed embedded memory (up to 256 Kbytes of Flash and up to 32 kilobytes of SRAM), and a wide range of enhanced peripherals and I/O.

STM32F030CCT6TR

STM32F030CCT6TR provides standard communication interfaces (up to two i2c, up to two spi and up to 6 usart), a 12-bit ADC, 7 general-purpose 16-bit timers and an advanced control PWM timer STM32F030x4/x6/x8/xC microcontroller The device operates over the -40 to +85°C temperature range and operates from a 2.4 to 3.6V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.

Functional features of STM32F030CCT6TR

1. Core: Arm® 32-bit Cortex®-M0 CPU, frequency up to 48MHz

2. Memory:

(1)16kbytes ~ 256kbytes flash memory

(2)4 ~ 32kbytes SRAM and HW parity

(3)CRC calculation unit

(4) Digital and I/o power supply: VDD = 2.4 V to 3.6 V

(5)Analog power supply: VDDA = VDD to 3.6 V

(6) Power on/off reset (POR/PDR)

(7) Low power consumption mode: sleep, stop, standby

3. Clock management

(1) Crystal oscillator from 4 to 32 MHz

(2)Calibrated RTC 32khz oscillator

(3) Internal 8 MHz RC and x6 phase locked loop options

(4) Internal 40khz RC oscillator

(5)Up to 55 fast I/o

All mappable to external interrupt vectors

Up to 55 I/o, 5V fault tolerance

(6)5-channel DMA controller

(7) One 12-bit, 1.0µs ADC (up to 16 channels)

Conversion range: 0 ~ 3.6 V

Independent analog power supply: 2.4 V to 3.6 V

(8) Calendar RTC with alarm and periodic wake-up from stop/standby

(9)11 timers

4. A 16-bit advanced control timer, six-channel PWM output, up to 7 16-bit timers, up to 4 IC/OC, OCN, for infrared control.

Application areas of STM32F030CCT6TR

STM32F030CCT6TR is a 32-bit microcontroller with high performance and low power consumption. Its main application areas are as follows:

1. Industrial control: STM32F031C6T7 can be used in industrial automation, process control, motor control, robots and other fields. It has high-speed computing and precise control capabilities, and can implement complex control algorithms and real-time feedback.

2. Consumer electronics: STM32F031C6T7 can be widely used in consumer electronics products, such as smart home equipment, smart TVs, audio equipment, digital cameras, game consoles, etc. It has good graphics processing and data processing capabilities, and can support multimedia applications and high-performance algorithms.

3. Communication: STM32F031C6T7 can be used in various communication equipment, including wireless communication modules, network equipment, telephone equipment, etc. It supports a variety of communication protocols and interfaces, such as UART, SPI, I2C, USB, etc., and can achieve stable data transmission and communication functions.

4. Medical equipment: STM32F031C6T7 can be used in various medical equipment, such as medical image processing, vital sign monitoring, medical instruments, etc. It features high precision and low power consumption, enabling reliable data collection and real-time processing.

5. Security monitoring: STM32F031C6T7 is suitable for security monitoring systems, video surveillance equipment, intrusion alarm systems, etc. It has high-performance image processing and compression encoding capabilities, and can realize real-time transmission and storage of high-definition videos.

Parameters of STM32F030CCT6TR

Brand: STMicroelectronics

Product Category: 32-bit MCU

Voltage-power supply (Vcc/Vdd): 2.4V ~ 3.6V

Data converter: A/D 12x12b

Package: 48-LQFP(7x7)

Oscillator type: Internal

Packaging: disc

Working temperature: -40°C ~ 85°C(TA)

Product tag: General MCU

Installation type: surface mount type

Core processor: ARM Cortex-M0

Basic product number: STM32

Kernel specification: 32-bit

Program storage capacity: 256KB (256K x 8)

Speed: 48MHz

Program memory type: Flash

Connectivity: I2C, SPI, UART/USART

EEPROM capacity:-

Peripherals: DMA, POR, PWM, WDT

RAM size: 32K x 8

Number of I/Os: 39

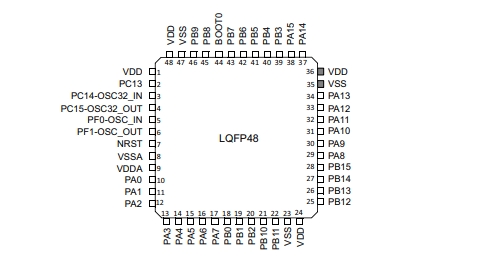

Pin diagram of STM32F030CCT6TR

Pin diagram of STM32F030CCT6TR

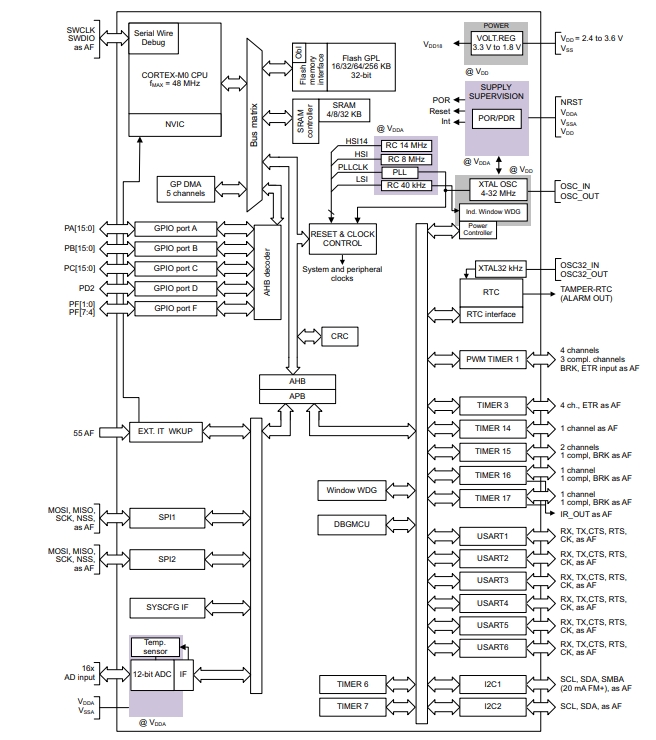

Schematic diagram of STM32F030CCT6TR

Schematic diagram of STM32F030CCT6TR

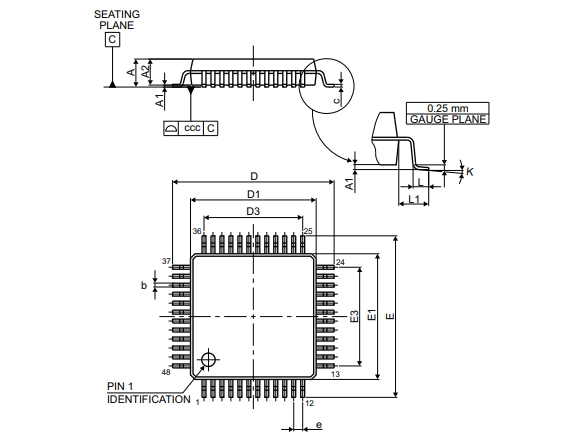

Package diagram of STM32F030CCT6TR
