Texas Instruments SN74LVC4245APWR: Detailed explanation of technical parameters and application areas

SN74LVC4245APWR is an 8-bit bidirectional level converter and voltage level shifter chip produced by Texas Instruments. TOPCHIP ELECTRONICS, which sells a full range of IC electronic components under Texas Instruments, will provide you with detailed technical parameters, functional features, application fields and pin diagrams of SN74LVC4245APW.

Detailed explanation of technical parameters of SN74LVC4245APWR

Original Manufacturer: Texas Instruments

Product Family: Logic Devices - Converters, Level Shifters

Packaging: Tape and Reel (TR), Cut Tape (CT)

Series: 74LVC

Part status: active

Converter Type: Voltage Level

Channel type: bidirectional

Number of circuits: 1

Number of channels per circuit: 8

Voltage-VCCA: 4.5V ~ 5.5V

Voltage?-VCCB: 2.7V ~ 3.6V

Output type: Tri-state, non-inverting

Working temperature: -40°C ~ 85°C (TA)

Installation type: surface mount type

Product package: TSSOP-24

Standard packaging: 2000 pieces/disk

SN74LVC4245APWR functional features

1. 8-bit bidirectional level converter, which can realize bidirectional conversion between different levels.

2. Voltage level shifter function can convert signals from one voltage level to another.

3. Using low-voltage CMOS technology, it has the characteristics of low power consumption and high-speed transmission.

4. Bidirectional level conversion between 3.3V and 5V systems is possible.

SN74LVC4245APWR application fields

1. Electronic device interface: used for bidirectional conversion of different level signals, such as UART, SPI, I2C and other interfaces.

2. Power management system: can be used for signal conversion and transmission between different voltage levels.

3. Industrial control system: used for conversion and transmission of different level signals in industrial control equipment.

4. Communication equipment: used for level conversion and voltage level shifters in various communication equipment.

5. Automotive electronics: Perform level conversion and voltage level shifters in automotive electronic systems.

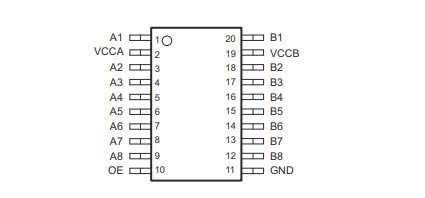

SN74LVC4245APWR pin diagram
