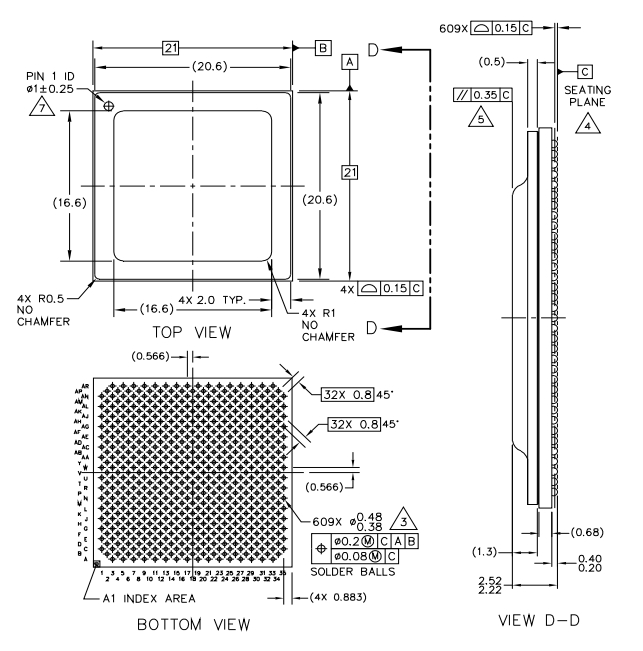

MIMX8UX5AVLFZAC pin diagram and parameter introduction

NXP's model number MIMX8UX5AVLFZAC belongs to the MCU microcontroller family, which is composed of i.MX8QuadXPlus and 8DualXPlus processors in the i.MX8X family. i.MX8X consists of three to five processor Arm cores (two to four Arm Cortex®-A35 and one Cortex®-M4F).

MIMX8UX5AVLFZAC independent GPU and VPU subsystems and fault-ready display controller. Advanced multi-core audio processing is supported by Arm cores and high-performance Tensilica® HiFi4DSP for audio pre-processing, post-processing and speech recognition. The i.MX8X series supports up to three displays, with multiple display export options including parallel, MIPI-DSI and LVDS. The device’s memory interfaces include: LPDDR4, DDR3L, 2× Quad SPI or 1× Octal SPI (FlexSPI), eMMC 5.1, RAW NAND and SD 3.0.

MIMX8UX5AVLFZAC features a wide range of peripheral I/O such as CAN, parallel or MIPICSI camera input, Gigabit Ethernet, USB2.0OTG, USB3.0 (8QuadXPlus/8DualXPlus only), ADC and PCIe3.0 to provide impressive flexibility.

Functional features of MIMX8UX5AVLFZAC

1. Powerful processing power: MIMX8UX5AVLFZAC uses eight-core ARM Cortex-A72 and Cortex-A53 architecture, which can provide a main frequency of up to 1.2GHz, giving it excellent performance under multi-threading and high load conditions.

2. Advanced graphics processing capabilities: MIMX8UX5AVLFZAC integrates the powerful Vivante GC7000Lite GPU, provides excellent graphics rendering and acceleration capabilities, supports multiple graphics interfaces and standards such as OpenGL ES 3.1, Vulkan 1.0 and OpenCL 1.2, and can meet complex graphics and Calculation requirements.

3. Multimedia processing capabilities: MIMX8UX5AVLFZAC supports a variety of audio and video codec standards, including H.265, H.264, VP9 and VP8, etc., which can realize high-definition video playback and recording. It also supports audio codecs and DSP, which can achieve Rich multimedia processing functions.

4. Powerful security performance: MIMX8UX5AVLFZAC has rich security features, including hardware encryption engine, secure boot, trusted execution environment and other functions, which can ensure the security of the system and data.

5. Multiple interfaces and connectivity: MIMX8UX5AVLFZAC supports a variety of external interfaces and connectivity, including PCIe, USB 3.0, Ethernet, SDIO, SPI, etc., and can perform high-speed data transmission and communication with various external devices and modules.

Application areas of MIMX8UX5AVLFZAC

MIMX8UX5AVLFZAC is a high-performance, low-power application processor suitable for a variety of application fields. Its main application fields are as follows:

1. Automotive electronics: MIMX8UX5AVLFZAC can be used in automobile intelligent driving systems, in-vehicle entertainment systems, in-vehicle communication systems, etc. It has powerful computing power and multimedia processing capabilities, and can meet the needs of vehicle data processing, perception and decision-making, human-computer interaction, etc.

2. Industrial control: MIMX8UX5AVLFZAC processor can be used in industrial automation fields, such as industrial robots, factory automation systems, Internet of Things gateways, etc. It has rich interface and communication capabilities, can process real-time data and control signals, and realize high-performance industrial control applications.

3. Smart home: MIMX8UX5AVLFZAC is suitable for smart home systems, such as smart speakers, smart cameras, smart home appliances, etc. It supports speech recognition, image processing and human-computer interaction functions, and can realize the intelligence and networking of smart home devices.

4. Medical equipment: MIMX8UX5AVLFZAC processor can be used in medical equipment, such as portable medical equipment, medical imaging equipment, etc. It has high-performance image processing and signal processing capabilities, can process medical data and images, and achieve accurate diagnosis and monitoring functions of medical equipment.

5. Intelligent security: MIMX8UX5AVLFZAC is suitable for intelligent security systems, such as intelligent access control, video surveillance, etc. It supports high-definition video processing and image analysis, and can realize security monitoring and intelligent identification functions.

6. Artificial intelligence: The MIMX8UX5AVLFZAC processor has strong computing power and neural network acceleration capabilities, and can be used for artificial intelligence applications, such as face recognition, speech recognition, object detection, etc.

MIMX8UX5AVLFZAC parameters

Brand: NXP

Product Category: MCU Microcontroller

Working temperature: -40 ℃~125 ℃

Package/Case: FCPBGA-1296

Package: Tray

Series: i.MX 8DualX

Core: ARM Cortex A35, ARM Cortex M4F

Data RAM size: 512 kB

Number of cores: 5 Core

I/O voltage: 1.8 V, 3.3 V

Data bus width: 64 bit

Interface type: CAN, I2C, SPI, USART, USB

Maximum clock frequency: 264 MHz, 1.2 GHz

Storage type: DDR3L, LPDDR4, SRAM

L1 cache instruction memory: 16 kB, 4 x 32 kB

Humidity Sensitivity: Yes

L1 cache data memory: 16 kB, 4 x 32 kB

Number of input/output terminals: 609 I/O

Operating power supply voltage: 1 V

Number of timers/counters: 1 x 32 bit

Watchdog timer: Watchdog Timer

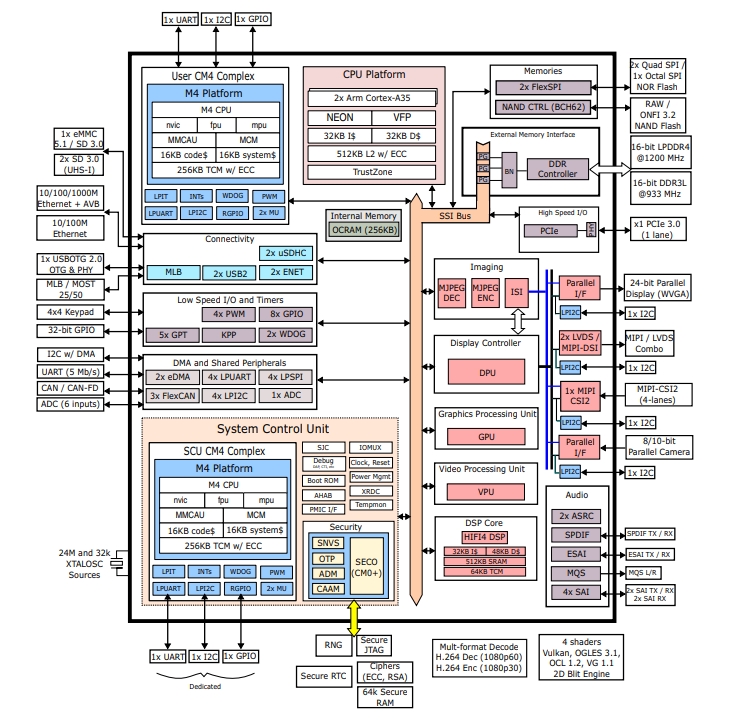

Schematic diagram of MIMX8UX5AVLFZAC

MIMX8UX5AVLFZAC material number explanation chart
