F1100 Description
This device is part of a series of downconverting mixers covering all UTRA bands. The IDT F1100 dual channel device operates with a single 5V supply. It is optimized for operation in a Multi-carrier BaseStation Receiver for RF bands from 698 to 915 MHz with High Side Injection. IF frequencies from 150 to 450 MHz are supported. Nominally, the device offers +41 dBm Output IP3 with 350 mA of ICC.
A member of IDT’s Zero-Distortion™ family, this RF to IF mixer reduces distortion for improved SNR while simultaneously reducing power consumption.
F1100 Features
Dual path for diversity systems
Ideal for multi-carrier systems
MIMO friendly: -6 dBm min LO drive
9 dB Gain
Ultra linear: +41 dBm IP3O (350 MHz IF)
Low NF ~10 dB
200 Ω output impedance
Ultra high +13 dBm P1dBI
Pin Compatible with existing solutions
6x6 36 pin package
Power Down mode
Standard Mode: ICC = 350 mA

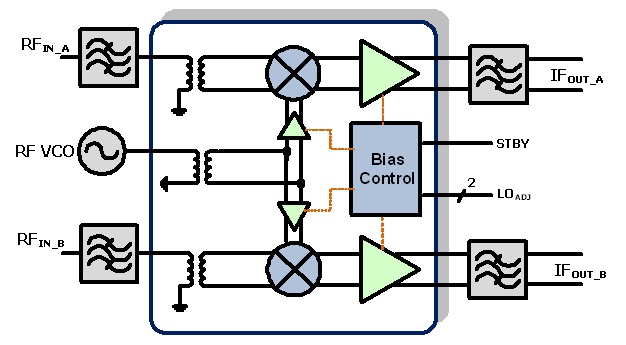

F1100 Block Diagram
