1EDI40I12AF is a 1200 V, 7.5 A single-channel isolated gate driver chip from Infineon with independent output and short-circuit clamping function. It is an agent for sales of Infineon's full range of IC electronic components - TOPCHIP ELECTRONICS provides you with 1EDI40I12AF parameter specifications, application fields and pin diagrams.
1. 1EDI40I12AF parameter specifications
Part status: active
Technology: Magnetic Coupling
Number of channels: 1
Voltage-Isolation:-
Common-mode transient immunity (minimum): -
Propagation delay tpLH/tpHL (maximum): -
Pulse Width Distortion (Max):-
Rise/fall time (typ): 10ns, 9ns
Current - Output High, Low: -
Current - Peak Output: -
Voltage - Forward (Vf) (Typical): -
Current - DC Forward (If) (Maximum): -
Voltage - Output power supply: 13V ~ 35V
Working temperature: -40°C ~ 150°C (TJ)
Installation type: surface mount type
Package: 8-SOIC (0.154, 3.90mm wide)
Supplier device package: PG-DSO-8-51
2. Functional features of 1EDI40I12AF
EiceDRIVER™ Compact Single Channel Isolated Gate Driver Series
Suitable for 600 V, 650 V, 1200 V IGBT, SiC and Si MOSFETs
Galvanically Isolated Coreless Transformer Gate Driver
7.5 A typical sink and source peak output current
40 V absolute maximum output supply voltage
300 ns propagation delay, 240 ns input filter
High common mode transient immunity CMTI >100 kV/μs
Independent source and sink outputs
Short circuit clamping and active shutdown
DSO-8 150 mil narrow body package with 4 mm creepage
10.5 V/12.7 V undervoltage lockout (UVLO) protection with hysteresis
3. 1EDI40I12AF application fields
Motor control and driver
Servo motor drive and control
Switch Mode Power Supply (SMPS)
Uninterruptible power supply (UPS)

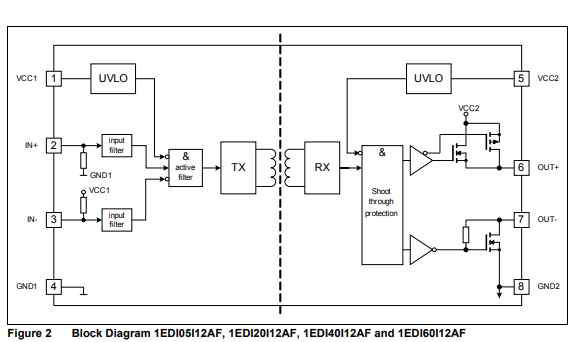

4. 1EDI40I12AF functional block diagram
