HE1AN-P-DC24V-Y5

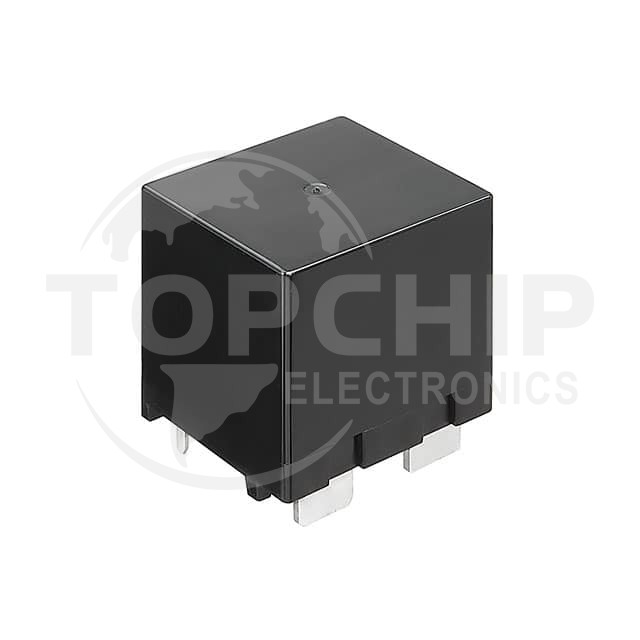

Image is for reference, please contact us to get the real picture

Manufacturer Part
HE1AN-P-DC24V-Y5
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 48A 24V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
80
Datasheets
-

HE1AN-P-DC24V-Y5 Specifications

  • Series:HE-PV
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:24VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):48 A
  • Switching Voltage:250VAC - Max
  • Coil Current:80 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:16.8 VDC
  • Must Release Voltage:2.4 VDC
  • Operate Time:30 ms
  • Release Time:10 ms
  • Operating Temperature:-50°C ~ 55°C
  • Contact Material:Silver Nickel (AgNi)
  • Relay Type:General Purpose
