STM32G071KBU6N (ST 32-bit MCU) pin diagram and parameter introduction

STMicroelectronics' model STM32G071KBU6N is a 32-bit MCU microcontroller, based on the high-performance Arm® Cortex®-M0+32-bit RISC core and operating frequency up to 64MHz. They provide a high level of integration for a wide range of applications in the consumer, industrial and home appliance sectors and are ready for Internet of Things (IoT) solutions.

STM32G071KBU6N includes Memory Protection Unit (MPU), high-speed embedded memory (36KB SRAM and up to 128KB Flash program memory with read protection, write protection, proprietary code protection and secure area), DMA, extensive system functions, enhanced I/ O and peripherals.

STM32G071KBU6N provides standard communication interfaces (two I2C, two SPI/one I2S, one HDMI CEC and four USART), a 12-bit ADC (2.5MSps) with up to 19 channels, a 12-bit DAC with two channels, Two fast comparators, an internal voltage reference buffer, a low-power RTC, an advanced control PWM timer running at twice the CPU frequency, and five general-purpose 16-bit timers, one of which runs at the CPU frequency Twice, one 32-bit general-purpose timer, two basic timers, two low-power 16-bit timers, two watchdog timers and a SysTick timer.

Functional features of STM32G071KBU6N

1. ARM Cortex-M0+ core: STM32G071KBU6N uses the ARM Cortex-M0+ core, which has an efficient instruction set, low power consumption and excellent performance.

2. Rich peripherals: STM32G071KBU6N integrates a rich set of peripherals, including a variety of communication interfaces (such as SPI, I2C, USART, etc.), analog-to-digital converters (ADCs), timers and counters (TIMs), and many Various types of IO interfaces can meet various application needs.

3. Low power consumption characteristics: STM32G071KBU6N focuses on low power consumption performance in design, and can meet application scenarios with strict battery life requirements. It is an ideal choice for battery-driven and portable devices.

4. Security function: As IoT devices become increasingly popular, security has become an extremely important aspect. The STM32G071KBU6N provides security features to reduce the risk of threats and unauthorized access.

5. High performance and flexibility: STM32G071KBU6N has a high clock frequency and a variety of modulation instructions, allowing it to meet applications with high performance and flexibility requirements.

Application fields of STM32G071KBU6N

SSTM32G071KBU6N is an MCU microcontroller based on the ARM Cortex-M0+ core. Its main application areas are as follows:

1. Industrial control: As a controller in the field of industrial automation, it can be used in PLC (programmable logic controller), sensor interface, industrial network communication, etc.

2. Consumer electronic products: can be used in smart home equipment, wearable devices, smart home appliances and other fields.

3. Medical equipment: It can be used in medical monitoring equipment, portable medical equipment, health trackers and other medical fields.

4. Industrial sensors and instruments: Can be used in various types of sensors, measuring instruments, data acquisition equipment and other fields.

Parameters of STM32G071KBU6N

Brand: STMicroelectronics

Product Category: 32-bit MCU

Package: 32-UFQFPN(5x5)

Packaging: Pallet

Core processor: ARM Cortex-M0+

Kernel specification: 32-bit

Speed: 64MHz

Connectivity: HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB

Peripherals: Undervoltage detection/reset, DMA, I2S, POR, PWM, WDT

Number of I/Os: 30

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM capacity:-

RAM size: 36K x 8

Voltage-power supply (Vcc/Vdd): 1.71V ~ 3.6V

Data converter: A/D 13x12b; D/A 2x12b

Oscillator type: Internal

Working temperature: -40°C ~ 85°C(TA)

Installation type: surface mount type

Basic product number: STM32

HTSUS: 8542.31.0001

Product application: high performance MCU

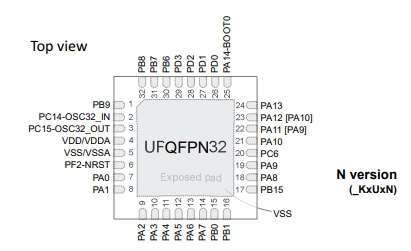

Pin diagram of STM32G071KBU6N

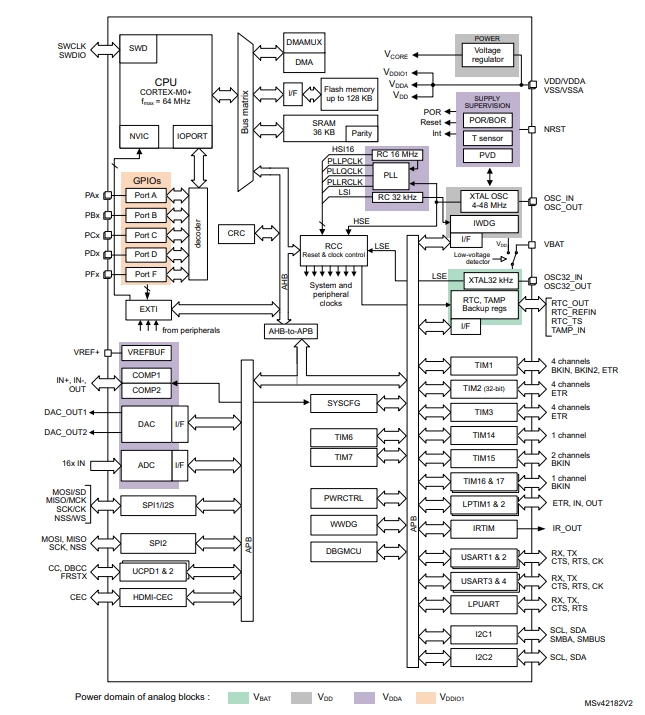

Schematic diagram of STM32G071KBU6N

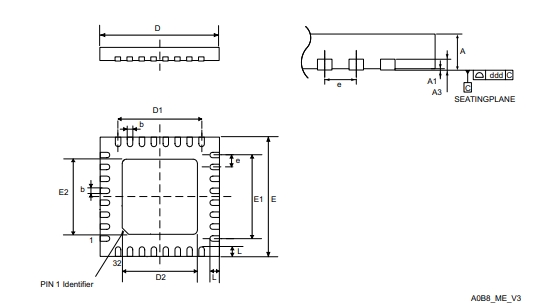

Package diagram of STM32G071KBU6N
