STMicroelectronics' model STM32G071G8U6N (click to buy now) is a 32-bit MCU microcontroller, based on the high-performance Arm® Cortex®-M0+ 32-bit RISC core and operating frequency up to 64MHz. They provide a high level of integration for a wide range of applications in the consumer, industrial and home appliance sectors and are ready for Internet of Things (IoT) solutions.
STM32G071G8U6N includes Memory Protection Unit (MPU), high-speed embedded memory (36KB SRAM and up to 128KB Flash program memory with read protection, write protection, proprietary code protection and secure area), DMA, extensive system functions, enhanced I/ O and peripherals.
STM32G071G8U6N provides standard communication interfaces (two I2C, two SPI/one I2S, one HDMI CEC and four USART), a 12-bit ADC (2.5MSps) with up to 19 channels, a 12-bit DAC with two channels, Two fast comparators, an internal voltage reference buffer, a low-power RTC, an advanced control PWM timer running at twice the CPU frequency, and five general-purpose 16-bit timers, one of which runs at the CPU frequency Twice, one 32-bit general-purpose timer, two basic timers, two low-power 16-bit timers, two watchdog timers and a SysTick timer.
Functional features of STM32G071G8U6N
1. High performance: STM32G071G8U6N uses a high-performance Arm Cortex-M0+ core with a main frequency of up to 64MHz, which can provide fast computing power and response speed and is suitable for applications with high performance requirements.
2. Rich peripherals: STM32G071G8U6N integrates a rich set of peripherals, including multiple general-purpose timers, 16-bit high-resolution timers, high-performance synchronous AD converters, multi-channel DMA controllers, etc., which can meet different applications The peripheral requirements of the scene.
3. Low power consumption design: STM32G071G8U6N supports a variety of low power consumption modes, including sleep mode, shutdown mode and standby mode, which can effectively reduce power consumption and extend battery life, and is suitable for application scenarios with strict power consumption requirements.
4. Security: STM32G071G8U6N has a number of built-in security features, including hardware encryption modules, secure memory, secure boot, etc., which can effectively protect device and data security.
5. Rich communication interfaces: STM32G071G8U6N supports a variety of communication interfaces, including SPI, I2C, USART, CAN, etc., which are suitable for different communication needs and can easily communicate with external devices.
Application fields of STM32G071G8U6N
STM32G071G8U6N is a 32-bit MCU microcontroller based on the Arm Cortex-M0+ core. It has rich peripherals and high integration. Its main application areas are as follows:
1. Industrial control: STM32G071G8U6N can be used in applications such as industrial automation control systems, industrial robots, sensor interfaces and data acquisition. Its rich communication interfaces and low power consumption characteristics make it an ideal choice in the field of industrial control.
2. Consumer electronics: In consumer electronics products, such as smart home devices, smart watches, fitness trackers, etc., STM32G071G8U6N can provide good performance and power consumption optimization to meet the needs of various applications.
3. Medical equipment: The field of medical equipment has very high requirements for performance and reliability. The low power consumption and high integration of STM32G071G8U6N make it the first choice for medical equipment, such as portable medical equipment, medical sensor interfaces, etc.
4. Network and communication equipment: STM32G071G8U6N can also be used in network routers, Internet of Things (IoT) devices, sensor networks and other fields. Its rich communication interfaces and low power consumption characteristics make it suitable for the control and management of various network and communication equipment .
Detailed explanation of parameters of STM32G071K8T3
Brand: STMicroelectronics
Product Category: 32-bit MCU
Package: 28-UFQFPN(4x4)
Packaging: Pallet
Core processor: ARM Cortex-M0+
Kernel specification: 32-bit
Speed: 64MHz
Connectivity: HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB
Peripherals: Undervoltage detection/reset, DMA, I2S, POR, PWM, WDT
Number of I/Os: 26
Program storage capacity: 64KB (64K x 8)
Program memory type: Flash
EEPROM capacity:-
RAM size: 36K x 8
Voltage-power supply (Vcc/Vdd): 1.71V ~ 3.6V
Data converter: A/D 11x12b; D/A 2x12b
Oscillator type: Internal
Working temperature: -40°C ~ 85°C(TA)
Installation type: surface mount type

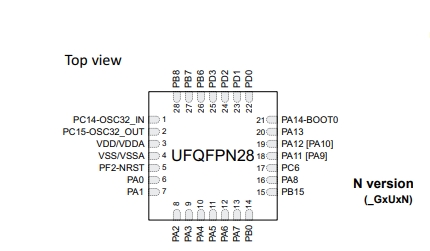

Pin diagram of STM32G071G8U6N

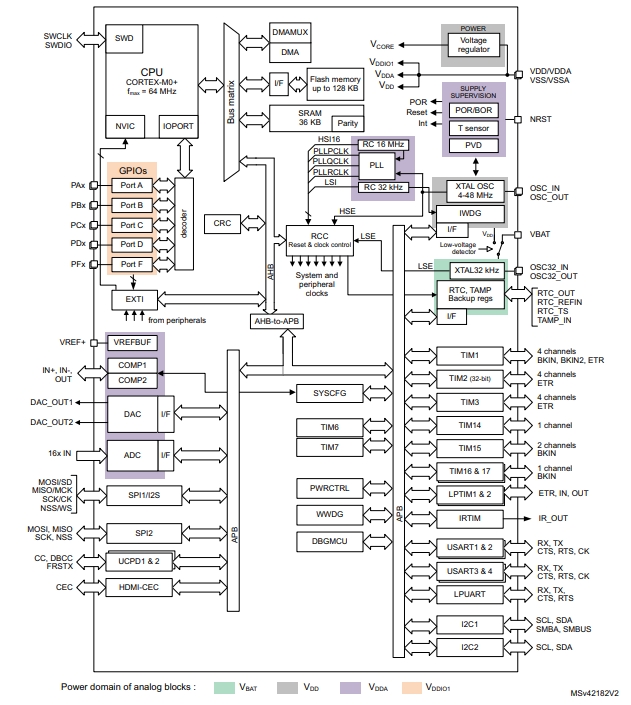

Schematic diagram of STM32G071G8U6N
