STM32F437VIT6 (ST 32-bit MCU) pin diagram and parameter introduction

STMicroelectronics' model STM32F437VIT6 is an MCU microcontroller that uses a high-performance Arm® Cortex®-M4 32-bit RISC core and operates at a frequency of up to 180 MHz. The Cortex-M4 core features a floating-point unit (FPU) single precision and supports all Arm® single-precision data processing instructions and data types. It also implements a comprehensive set of DSP instructions and a Memory Protection Unit (MPU) that enhances application security.

The STM32F437VIT6 includes high-speed embedded memory (up to 2Mbytes of Flash, up to 256KB of SRAM), up to 4 KB of backup SRAM, and a large number of enhanced I/Os connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. O and peripherals.

STM32F437VIT6 provides three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers (including two PWM timers for motor control), two general-purpose 32-bit timers, a true Random number generator (RNG) and a cryptographic acceleration unit.

Functional features of STM32F437VIT6

1. ARM Cortex-M4 core: STM32F437VIT6 uses the ARM Cortex-M4 core, which has high-performance computing capabilities and rich peripheral functions to meet the needs of complex applications.

2. Integrate rich peripherals: STM32F437VIT6 integrates rich peripherals, including multiple general-purpose timers, PWM controllers, communication interfaces (such as SPI, I2C, UART, etc.), analog-to-digital converters (ADC), etc., which can meet various needs. requirements of various application scenarios.

3. Rich memory: STM32F437VIT6 has large-capacity Flash memory and SRAM, and supports external storage expansion, which can meet the code and data storage needs of complex applications.

4. Low-power design: STM32F437VIT6 adopts an advanced low-power design, which can reduce power consumption while ensuring high performance, and is suitable for application scenarios with high power consumption requirements.

5. Strong security: STM32F437VIT6 has rich security features, including hardware encryption, random number generator, secure memory and other functions, which can ensure system security and data confidentiality.

Application fields of STM32F437VIT6

STM32F437VIT6 is a high-performance ARM Cortex-M4 core microcontroller. Its main application areas are as follows:

1. Industrial field: In the field of industrial automation, STM32F437VIT6 can be used in control and monitoring systems, including factory automation, robotics, sensor and actuator control and other applications. Its high performance and rich communication interfaces can meet the needs of industrial equipment for real-time data processing and communication.

2. Smart home and IoT: In the fields of smart home and IoT, STM32F437VIT6 can be used in IoT gateways, smart home controllers, sensor nodes and other devices to achieve interconnection and intelligent control between devices.

3. Medical equipment: In the field of medical equipment, STM32F437VIT6 can be used in medical equipment such as medical monitoring equipment, medical imaging equipment, and electronic medical record systems. Its high performance and reliability can meet the data processing and security requirements of medical equipment.

4. Consumer electronics: In the field of consumer electronics, such as smartphones, tablets, smart wearable devices, etc., STM32F437VIT6 can be used to implement various control and processing functions, as well as connect external sensors and communication interfaces.

Parameters of STM32F437VIT6

Brand: STMicroelectronics

Product Category: 32-bit MCU

Package: 100-LQFP(14x14)

Packaging: Pallet

Core processor: ARM Cortex-M4

Kernel specification: 32-bit

Speed: 180MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG

Peripherals: Undervoltage detection/reset, DMA, I2S, LCD, POR, PWM, WDT

Number of I/Os: 82

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash

EEPROM capacity:-

RAM size: 256K x 8

Voltage-power supply (Vcc/Vdd): 1.8V ~ 3.6V

Data converter: A/D 16x12b; D/A 2x12b

Oscillator type: Internal

Working temperature: -40°C ~ 85°C(TA)

Installation type: surface mount type

Basic product number: STM32F437

HTSUS: 8542.31.0001

Product tag: General MCU

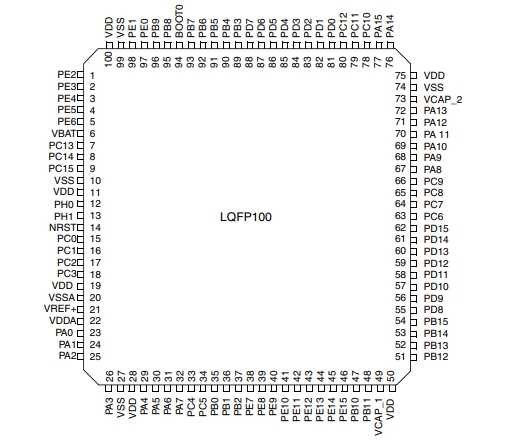

Pin diagram of STM32F437VIT6

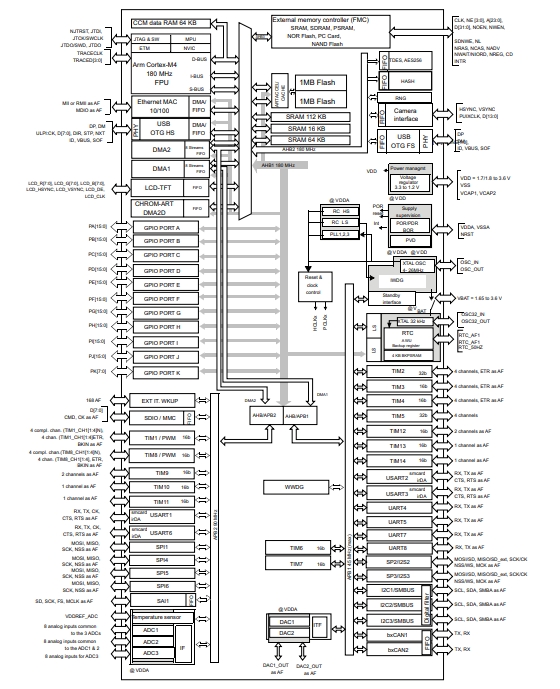

Schematic diagram of STM32F437VIT6

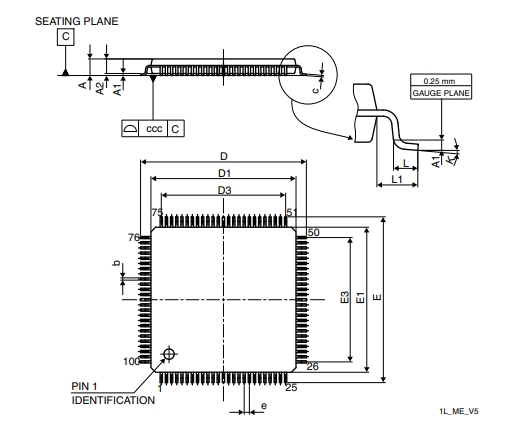

Package diagram of STM32F437VIT6

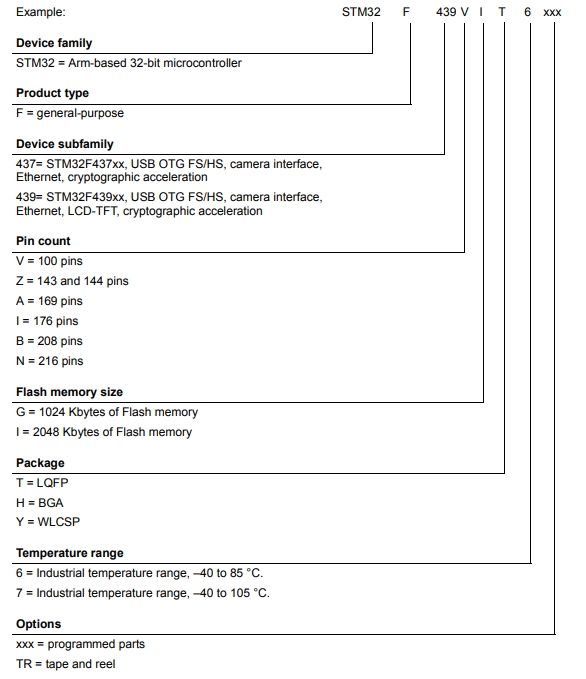

STM32F437VIT6 material number explanation diagram
