STMicroelectronics' model STM32F413VGT6 is an MCU microcontroller based on the high-performance Arm® Cortex-M4 32-bit RISC core with an operating frequency of up to 100MHz. The Cortex-M4 core has a single-precision floating-point computing unit (FPU) that supports all Arm single-precision data processing instructions and data types. It also has a complete DSP instruction set and a memory protection unit (MPU) to improve application security.
STM32F400CBT6 belongs to the STM32Dyamicefficicy product family (products integrating power efficiency, performance and integration), which adds an innovative feature called batch acquisition mode (BAM) to further reduce power consumption. STM32F400CBT6 is a capacity that integrates high-speed built-in memory, Flash memory and SRAM.
Functional features of STM32F413VGT6
1. ARM Cortex-M4 core: STM32F413VGT6 uses the powerful ARM Cortex-M4 core, which has the characteristics of high performance, low power consumption and high code efficiency. It supports 32-bit instruction set and floating-point operation unit, provides an extensive instruction set, and can handle complex algorithms and tasks efficiently.
2. High-speed computing capability: STM32F413VGT6 uses a high-speed clock source with a maximum frequency of 100MHz, which can quickly respond and handle various tasks. It is also equipped with 1MB Flash memory and 320KB SRAM, which can provide sufficient code and data storage space.
3. Rich peripheral interfaces: STM32F413VGT6 provides a variety of peripheral interfaces, including multiple general-purpose GPIO pins, UART serial ports, SPI, I2C, USB, timers, ADC and DAC, etc. These interfaces can meet different application needs and support the connection and communication of a variety of peripherals.
4. Multiple communication interfaces: STM32F413VGT6 supports multiple communication interface protocols, including CAN, Ethernet, SDIO and USB. These interfaces can easily communicate with external devices, such as connecting to networks, transmitting data, and storing data.
5. Rich functional modules: STM32F413VGT6 has multiple built-in functional modules, such as intelligent power management unit, intelligent motor control unit and hardware accelerator. These functional modules can provide additional functions and flexibility to meet the needs of different application scenarios.
6. Low-power design: STM32F413VGT6 adopts a low-power design and can work in low-voltage and low-power modes to save energy and extend battery life.
Application areas of STM32F413VGT6
1. Industrial automation: STM32F413VGT6 can be used in industrial control systems, robot control, factory automation and other fields. It has high performance, multiple interfaces and rich peripherals, and can meet the real-time control needs in industrial environments.
2. Smart home: In smart home systems, STM32F413VGT6 can be used to control home security, lighting, temperature and humidity control, and smart home appliances. It supports a variety of communication protocols and interfaces, allowing smart home devices to be networked and interconnected.
3. Consumer electronics: Due to its performance and low power consumption characteristics, STM32F413VGT6 has great application potential in the consumer electronics industry. It can be used in products such as smartphones, tablets, audio equipment, and wearable devices, providing efficient processing power and rich functions.
4. Medical electronics: STM32F413VGT6 is widely used in medical equipment. It can be used in medical monitoring equipment, medical imaging equipment, medical treatment equipment, etc. to provide stable and reliable control and data processing.
Parameters of STM32F413VGT6
Brand: STMicroelectronics
Product Category: 32-bit MCU
Program storage capacity: 1MB (1M x 8)
Program memory type: Flash
Package: 100-LQFP(14x14)
EEPROM capacity:-
Product tag: General MCU
RAM size: 320K x 8
Core processor: ARM Cortex-M4
Voltage-power supply (Vcc/Vdd): 1.7V ~ 3.6V
Kernel specification: 32-bit
Data converter: A/D 16x12b; D/A 2x12b
Speed: 100MHz
Oscillator type: Internal
Connectivity: CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG
Working temperature: -40°C ~ 85°C(TA)
Peripherals: Undervoltage detection/reset, DMA, I2S, LCD, POR, PWM, WDT
Installation type: surface mount type
Number of I/Os: 81
Basic product number: STM32F413

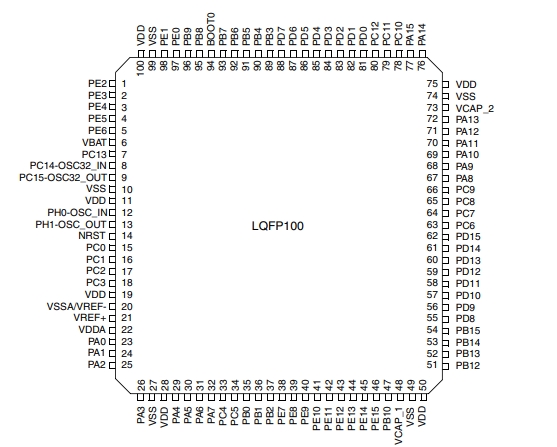

Pin diagram of STM32F413VGT6
Schematic diagram of STM32F413VGT6
If you need data manuals, sample testing, procurement, BOM distribution, etc., please contact us via the following email address：
Package diagram of STM32F413VGT6
