STM32F103VET6 is a 32-bit microcontroller with ARM Cortex-M3 core from STMicroelectronics. TOPCHIP ELECTRONICS, which sells STMicroelectronics' full range of IC electronic components as an agent, will provide you with STM32F103VET6 technical parameters, functional features and application areas, with pin diagrams and schematics attached.
STM32F103VET6 technical parameters
Brand: STMicroelectronics
Product Family: Embedded - Microcontrollers
Series: STM32F1
Part status: active
Core processor: ARM? Cortex?-M3
Kernel specification: 32-bit
Speed: 72MHz
Connectivity: CANbus, I2C, IrDA, LIN, SPI, UART/USART, USB
Peripherals: DMA, motor control PWM, PDR, POR, PVD, PWM, temperature sensor, WDT
Number of I/Os: 80
Program storage capacity: 512KB (512K x 8)
Program memory type: Flash
EEPROM capacity:-
RAM size: 64K x 8
Voltage-power supply (Vcc/Vdd): 2V ~ 3.6V
Data converter: A/D 16x12b; D/A 2x12b
Oscillator type: Internal
Working temperature: -40°C ~ 85°C (TA)
Installation type: surface mount type
Product packaging: 100-LQFP
STM32F103VET6 functional features
1. ARM Cortex-M3 core, high-performance processing capabilities
2. 512KB Flash memory, 64KB RAM
3. Universal timer, PWM controller, ADC/DAC and other peripherals
4. Multiple communication interfaces, such as SPI, I2C, USART, etc.
5. Low power consumption design, suitable for battery-powered equipment
STM32F103VET6 application areas
1. Industrial automation
2. Consumer electronics
3. Automotive electronics
4. Medical equipment
5. Smart home
6. IoT devices

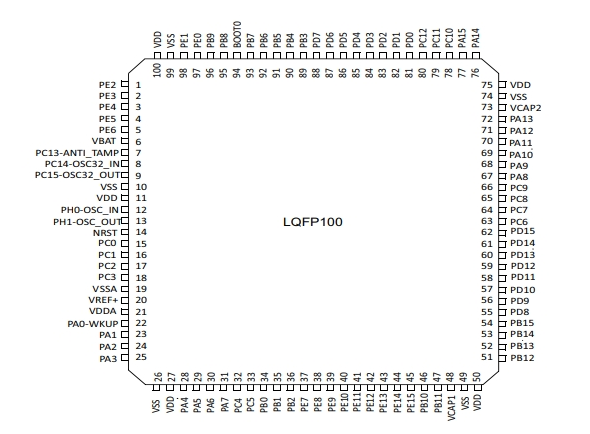

TM32F103VET6 pin diagram

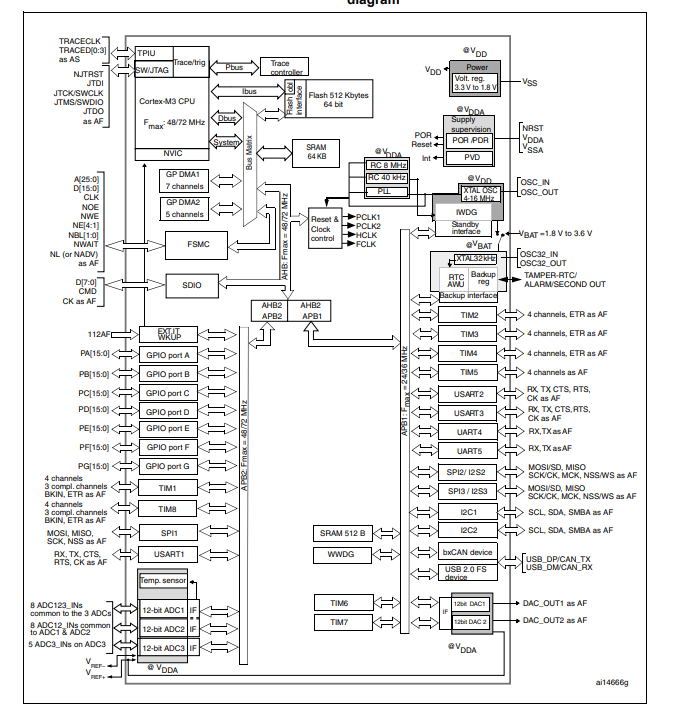

STM32F103VET6 schematic diagram
If you need data manuals, sample testing, procurement, BOM distribution, etc., please contact us via the following email address：
