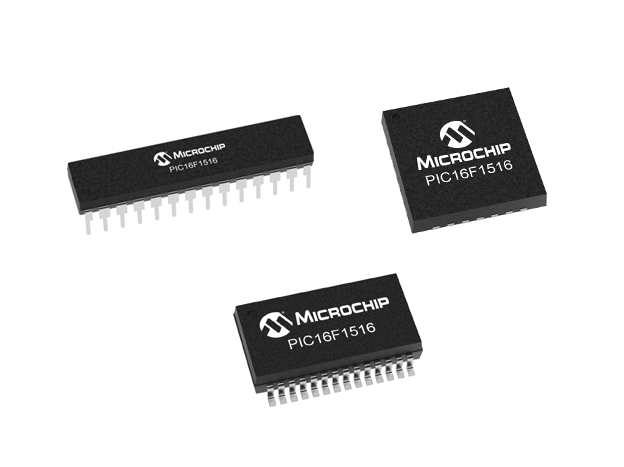

PIC16F1516 (Microchip Microcontroller): Introduction, parameters, product features and application areas

PIC16F1516 is an 8-bit microcontroller produced by Microchip Technology. This series has multiple pins and is widely used in various embedded systems. The following is the introduction, parameters, product features and application fields of PIC16F1516:

PIC16F1516 Introduction

PIC16F1516 is a high-performance 8-bit microcontroller launched by Microchip Technology, which is manufactured using advanced CMOS technology. It integrates a rich set of peripherals and functional modules, including a variety of communication interfaces, analog and digital IO, timers, PWM, interrupt controllers, etc., to meet the needs of various embedded systems. This microcontroller adopts a high-performance RISC architecture, has high computing speed and processing capabilities, and has low power consumption characteristics, making it suitable for various battery-powered application scenarios. PIC16F1516 also provides a wealth of development tools and technical support, allowing developers to quickly develop and deploy embedded applications.

PIC16F1516 parameters

Program memory size (KB): 14

Memory: 512

Data EEPROM (bytes): 0

Number of pins: 28

Maximum operating voltage (V): 5.5

Minimum operating voltage (V): 1.8

ADC maximum resolution: 10

ADC channel: No. 17

Zero Crossing Detection: False

Number of comparators: 0

SPI:1

I2C: 1-I2C

Independent PWM: 0

Low battery: yes

Numerically controlled oscillator (NCO): 0

Data Signal Modulator (DSM): 0

PIC16F1516 Product Features

1. High performance: Using advanced RISC architecture, it has high computing speed and processing capabilities.

2. Rich peripherals and functions: It integrates a variety of communication interfaces (such as SPI, I2C, UART, etc.), analog and digital IO, timers, PWM, interrupt controller and other peripherals and functional modules.

3. Low power consumption design: It has low power consumption characteristics and is suitable for various battery-powered application scenarios.

4. High reliability: It is manufactured using advanced CMOS technology and has good stability and reliability.

5. Rich development tools and technical support: Microchip provides a wide range of development tools and technical support, including development boards, debugging tools, technical documents and sample codes, etc., allowing developers to quickly develop and deploy embedded applications.

PIC16F1516 application areas

The PIC16F1516 microcontroller is suitable for a variety of embedded systems and application areas, including but not limited to the following aspects:

1. Industrial control: used in fields such as industrial automation, robot control, sensor data collection and processing.

2. Consumer electronics: used for the control and management of consumer electronic products such as household appliances, smart homes, electronic toys, and personal electronic products.

3. Automotive electronics: used for control, monitoring and management of automotive electronic systems, such as body electronics, engine control, in-car entertainment, etc.

4. Medical equipment: used for the control and data processing of medical equipment such as medical instruments, life monitoring equipment, and medical imaging equipment.

5. Communication equipment: used for the control and management of communication equipment, network equipment, wireless sensor networks and other communication fields.

The PIC16F1516 microcontroller has the characteristics of high performance, rich peripherals and functions, and low power consumption design, and is suitable for various embedded systems and application fields. It provides developers with an efficient and reliable solution to help them quickly develop and deploy embedded applications.
