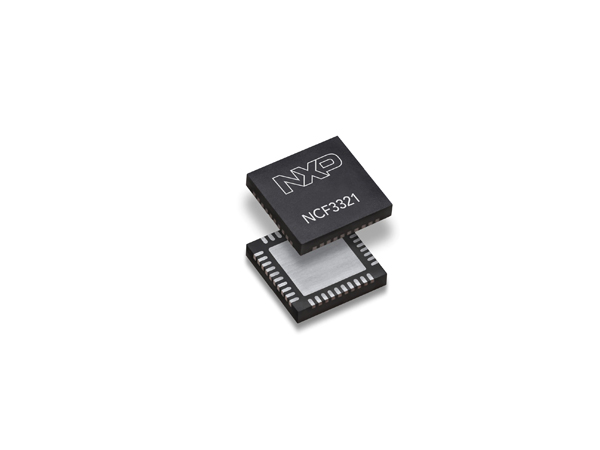

NXP Semiconductors' NCx3321 NFC Forum Compliant Front-End IC delivers superior RF performance for automotive applications. Featuring excellent RF capability, ultra-low operation and advanced diagnostic features, these NCx3321s are an ideal solution for door handle, dual pillar and center console applications.
The NXP NCx3321 front-end IC achieves excellent communication range through high RF output power and excellent receiver sensitivity, even in space-constrained antenna designs. The low-power card detection mode also meets the most challenging operating volume requirements of automotive and mobile phone OEMs.
Features
*NFC Forum compatible NFC front end supports all related 13.56MHz RF protocols, including reader and card emulation modes
*Transmitter with high RF output power (up to 1.75W operating power) and dynamic power control
*Receiver with high sensitivity, noise immunity and integrated EMD handling
*Supported RF frame size up to 1024bytes, no link required
*Ultra-low power card detection and low power card detection mode
* Overcurrent and overheating protection mechanism
*SPI host interface, speed up to 15MHz
*Wide temperature range: -40°C to +85°C (F type) and -40°C to +105°C (J type)
application
*Door handle/double post
*Low battery smart phone car access control
*Smart card car access control
*Low power card detection
*Beyond car access control
*Wireless readout of sensors
*NFC charging
*Central console/dashboard
* Driver authorization for engine start
*RFID card protection
*BLUETOOTH®/Wi-Fi® pairing
If you are interested in the above model, please contact us。
