NXP's model MPC8247CVRTIEA is an MCU microcontroller with an efficient dual-core architecture that integrates the 603e core and a separate RISC-based communication processor module. It has high-performance operation with a CPU frequency of 400MHz, a CPM frequency of up to 200MHz, and a bus frequency of up to 100MHz.
The MPC8247CVRTIEA has many features optimized for cost-sensitive designs and security-oriented network applications, an economical and powerful integrated security engine, supports industry-standard encryption algorithms, and provides a smooth migration path for designs based on PowerQUICC™ and PowerQUICC® II processors. .
Functional features of MPC8247CVRTIEA
1. High performance: MPC8247CVRTIEA adopts PowerPC architecture and is equipped with a high-speed processor core, which can achieve high processing performance and computing speed. It is suitable for areas such as high-performance computing, embedded systems and network equipment.
2. Multi-function integration: MPC8247CVRTIEA integrates a variety of functional modules, including multi-channel serial communication interface (UART), Ethernet controller, SPI interface and USB controller, etc., providing a wealth of peripheral interfaces and communication capabilities to facilitate System design and expansion.
3. Low power consumption design: MPC8247CVRTIEA adopts advanced low power consumption design technology to provide high performance while reducing power consumption as much as possible and extending the battery life of the device. It is suitable for some application scenarios with high power consumption requirements. .
4. High reliability: MPC8247CVRTIEA has high stability and reliability, can operate normally in an environment with a wide operating temperature range, and supports error detection and correction mechanisms to improve the reliability and stability of the system.
5. Security support: MPC8247CVRTIEA provides some security functions and technical support, such as supporting hardware encryption and decryption, access control, etc., to protect the data and information security of the system.
Application areas of MPC8247CVRTIEA
MPC8247CVRTIEA is an MCU microcontroller dedicated to automotive electronic control units (ECU). It is widely used in the following fields in automotive electronic systems:
1. Engine control system: MM912G634DV1AE can be used in automobile engine control units to monitor and control the engine's fuel injection, ignition, emission control and other functions.
2. Body electronic system: MM912G634DV1AE can be applied to the body control unit, which is responsible for controlling various body systems, such as central locking, anti-theft system, window control, etc.
3. Braking and safety system: MM912G634DV1AE can play a key role in the braking system, monitoring and controlling the operating status of the braking system, including anti-lock braking system (ABS), electronic stability control system (ESC), etc.
4. Electric drive system: In the electric drive system of electric vehicles or hybrid vehicles, MM912G634DV1AE can be used to control the motor and its control logic to achieve precise drive control.
5. Instrument panel and infotainment system: MM912G634DV1AE can also be used in automotive instrument panels and infotainment systems, responsible for controlling various instrument displays, audio playback, navigation systems and other functions.
Parameters of MPC8247CVRTIEA
Brand: NXP
Product Category: 32-bit MCU
Package: 516-PBGA(27x27)
Packaging: Pallet
Core processor: PowerPC G2_LE
Number of cores/bus width: 1, 32 bits
Speed: 400MHz
Coprocessor/DSP: Communications; RISC CPM
RAM controller: DRAM, SDRAM
Graphics acceleration: none
Display and Interface Controller:-
Ethernet: 10/100Mbps(2)
SATA:-
USB: USB 2.0(1)
Voltage-I/O: 3.3V
Working temperature: -40°C ~ 105°C(TA)
Security Features:-
Additional interfaces: I2C, SCC, SMC, SPI, UART, USART
Basic product number: MPC8247
HTSUS: 8542.31.0001
Product application: industrial grade

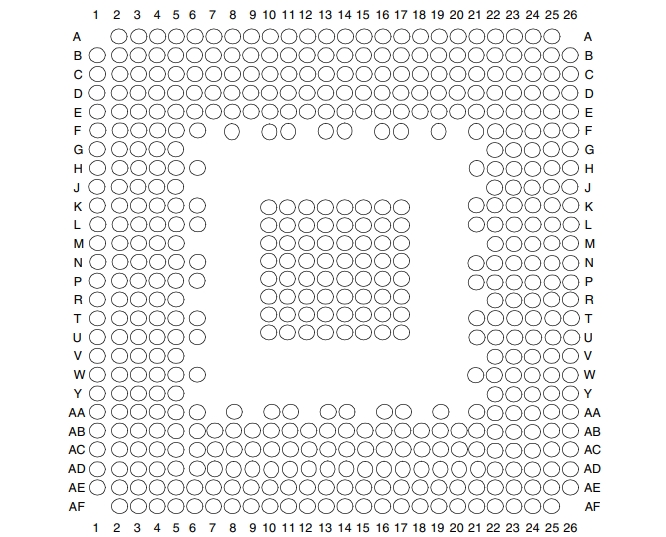

Pin diagram of MPC8247CVRTIEA

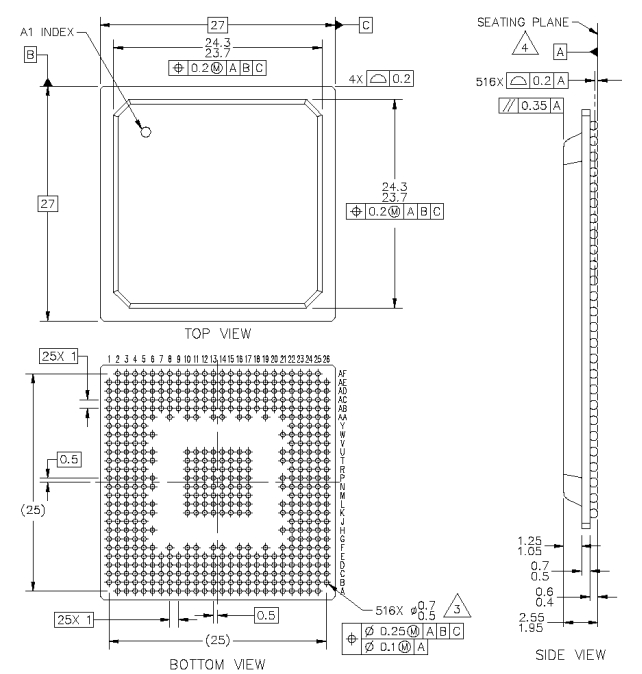

Package diagram of MPC8247CVRTIEA

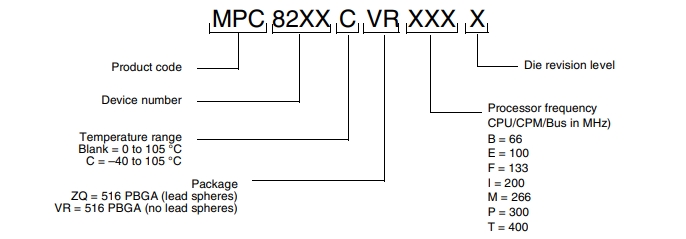

MPC8247CVRTIEA part number explanation diagram
