This blog mainly introduces NXP’s model MK10DX256VLK7: functional features, parameters, application fields, pin diagrams and packaging diagrams, etc., to help engineers better understand the K10DX256VLK7 product.
NXP's model MK10DX256VLK7 belongs to the MCU microcontroller and is a member of the Kinetis® K10 series. The 72 MHz MCU series provides high-precision analog integration, flexible low power consumption and peripheral options for industrial and consumer electronics applications, providing a rich suite of analog, communications, timing and control peripherals to meet a wide range of needs.
Functional features of MK10DX256VLK7
1. ARM Cortex-M4 core: MK10DX256VLK7 uses the high-performance ARM Cortex-M4 core, which has high processing power and efficiency and is suitable for application scenarios that require high-performance processing.
2. 256KB Flash and 64KB RAM: MK10DX256VLK7 has 256KB Flash memory and 64KB RAM, which can support larger-scale program storage and data processing requirements.
3. Rich peripheral interfaces: MK10DX256VLK7 has a variety of peripheral interfaces, including Universal Serial Bus (USB), SPI, I2C, CAN, etc., which can flexibly connect external devices and expand system functions.
4. Multiple timers: MK10DX256VLK7 has multiple built-in timers, including timers, PWM modules, etc., which can be used to achieve precise timing control and pulse width modulation functions.
5. Low power consumption design: MK10DX256VLK7 supports a variety of low power consumption modes, which can effectively reduce system power consumption and have good energy saving effects in battery-powered application scenarios.
6. Wide voltage working range: This microcontroller supports a wide voltage working range, can operate stably under different power supply conditions, and is suitable for various application scenarios.
Application fields of MK10DX256VLK7
MK10DX256VLK7 is a 32-bit ARM Cortex-M4 core microcontroller. Its main features are low power consumption, high performance and integrated design. Its main application areas are as follows:
1. Industrial automation field: NXP MK10DX256VLK7 can be used in industrial control, smart factories, robots, sensor data collection and processing, etc. Its high performance and low power consumption allow it to meet the requirements of industrial control systems for stability, reliability and efficient performance.
2. Automotive electronics field: NXP MK10DX256VLK7 is suitable for automotive electronic control units (ECUs), body control modules, electric vehicle control systems, etc. Its high performance and reliability allow it to implement complex control and computing tasks in the automotive field.
3. Smart home and Internet of Things fields: NXP MK10DX256VLK7 can be used in smart home control systems, smart home security systems, wireless communication modules, etc. Its low power consumption makes it ideal for IoT devices and smart home products that need to run for a long time.
4. Medical equipment field: NXP MK10DX256VLK7 can realize data collection, processing, control and other functions in medical equipment. Its high performance and reliability ensure the stable operation and data accuracy of medical equipment.
MK10DX256VLK7 parameters
Brand: NXP
Product Category: MCU
Package: LQFP-80
Packaging: Pallet
Core processor: ARM Cortex-M4
Kernel specification: 32-bit
Speed: 72MHz
Connectivity: CANbus, EBI/EMI, I2C, IrDA, SPI, UART/USART
Peripherals: DMA, I2S, LVD, POR, PWM, WDT
Number of I/Os: 56
Program storage capacity: 256KB
Program memory type: Flash
EEPROM capacity: 2K x 8
RAM size: 64K x 8
Voltage-power supply (Vcc/Vdd): 1.71V ~ 3.6V
Data converter: A/D 31x16b; D/A 1x12b
Oscillator type: Internal
Working temperature: -40°C ~ 105°C(TA)
Installation type: surface mount type
Basic product number: MK10DX256

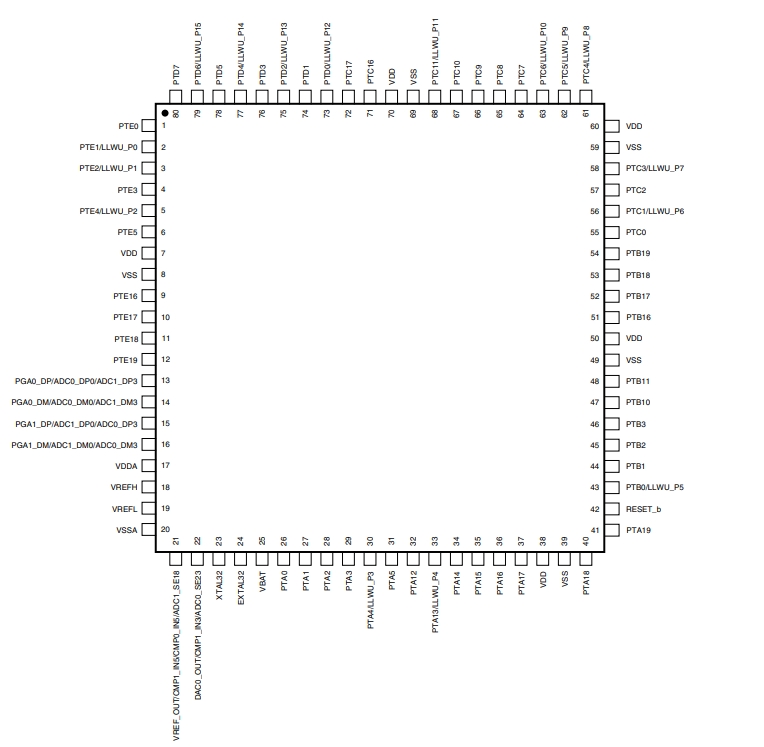

Pin diagram of MK10DX256VLK7

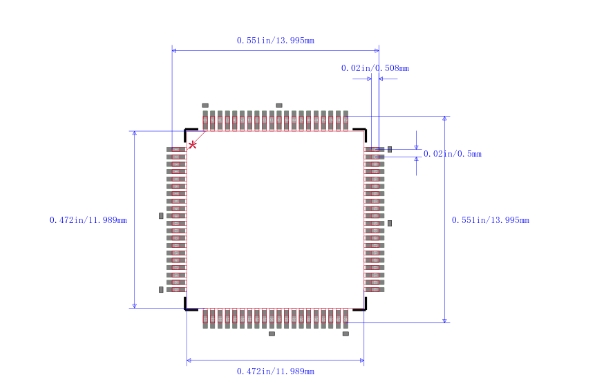

Package diagram of MK10DX256VLK7
MK10DX256VLK7 manufacturer
NXP Semiconductors is a leading supplier of embedded controllers offering a broad portfolio of MCUs with Arm-based processors and microcontrollers for a variety of industries including automotive, wireless connectivity and more. They continue to drive innovation offering a strong Power Management portfolio for industrial and automotive applications, including multiple power supplies and battery management solutions. NXP products power and connect across the globe building solutions, helping enhance the proficiency of people, organizations and the world has a whole.
Freescale Semiconductor has been acquired by NXP Semiconductor. Freescale Semiconductor parts are now a part of the NXP family (Dec 2015).
