Texas Instruments model INA219AIDR (click to buy now) is an operational amplifier, shunt and power monitor with I2C or SMBUS compatible interface. The device monitors the shunt voltage drop and the bus supply voltage, and the number of conversions and filtering options are programmable. The programmable calibration value combined with the internal multiplier allows direct reading of the current value, and additional multiplication registers allow calculation of power. I2C or SMBUS compatible interface has 16 programmable addresses.
INA219AIDR is available in two grades: Grade A and Grade B. Class B models have higher accuracy and tighter precision specifications. The INA219AIDR senses divided voltage in the bus from 0V to 26V. The device operates from a single 3V to 5.5V supply with a maximum current consumption of 1mA. The INA219 operates over a temperature range of -40°C to 125°C.
Functional features of INA219AIDR
1. High-precision measurement: INA219AIDR can measure DC current and bus voltage with high precision. Its built-in integrated current sensor has a typical accuracy of ±0.5%.
2. Low power consumption: This device has low power consumption characteristics, and its standby current is only 0.1μA. This makes the INA219AIDR ideally suited for applications with stringent energy-saving requirements, such as portable devices and battery-operated systems.
3. I2C interface: INA219AIDR uses the standard I2C interface to realize communication with the main control device. This interface facilitates integration with other peripherals and enables setting of various parameters through configuration registers.
4. Power supply monitoring function: INA219AIDR can not only monitor current, but also monitor power supply voltage, and provide data related to power supply voltage to facilitate system monitoring and control.
5. Internal calibration: The device has a built-in 16-bit ADC for measuring current and voltage. Unlike traditional sensors, the INA219AIDR can reduce measurement errors and provide more accurate measurement results through automatic calibration.
6. Protection functions: INA219AIDR has a variety of protection functions, such as over-current protection, short-circuit protection and under-voltage lockout protection. These protective features protect the system from unexpected failures and damage.
7. Temperature compensation: INA219AIDR has a temperature compensation function, which can provide more accurate measurement results at different operating temperatures. It has a built-in temperature sensor that automatically calibrates measurements to accommodate changes in operating temperature.
Application fields of INA219AIDR
INA219AIDR is a high-precision, low-power current and voltage monitoring chip. Its main application areas are as follows:
1. Battery Management System (BMS): INA219AIDR can be used to monitor the voltage and current during battery charging and discharging to ensure the safety and stability of the battery. It can be integrated into various battery-powered systems such as electric vehicles, power tools, and electric bicycles.
2. Power management system: INA219AIDR can be used to monitor the current and voltage in the power system to monitor the power consumption and energy efficiency of the system in real time. It can be applied to Ethernet switches, servers, communication base stations and other equipment to help optimize energy utilization and reduce power consumption.
3. Motor control system: INA219AIDR can be used to monitor the current and voltage of the motor during operation to protect the motor and system. In the field of industrial control, it can be used in various motor control systems such as stepper motor drivers and servo motor controllers.
4. Solar system: INA219AIDR can be used to monitor the charging and discharging current of solar panels, as well as the current and voltage of the battery pack, to help regulate the operation of the solar system and optimize energy utilization.
5. Smart grid: INA219AIDR can be used to monitor the current and voltage in the smart grid, monitor the grid load and power consumption in real time, and help optimize the operation and management of the grid.
6. Industrial automation: INA219AIDR can be used to monitor the current and voltage in industrial automation equipment, help monitor the status and energy consumption of the equipment in real time, and provide data support for equipment maintenance and optimization.
Parameters of INA219AIDR
Brand: Texas Instruments
Product Category: Operational Amplifier
Package/casing: SOIC8_150MIL
Power supply voltage, single/dual (±): 3V~5.5V
Installation type: SMT
Working temperature: -40℃~+125℃
Amplifier Type: Current Sense
Number of channels: 1
Certification information: RoHS
Length x Width/Dimensions: 4.90 x 3.90mm
Height: 1.75mm
Number of pins: 8Pin
Storage temperature: -65~+150℃
Component life cycle: Active
Pin distance: 0.65mm
Common Mode Rejection Ratio - CMRR: 120dB
Output current accuracy: ±0.5%

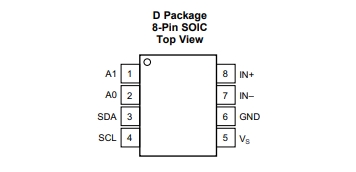

Pin diagram of INA219AIDR

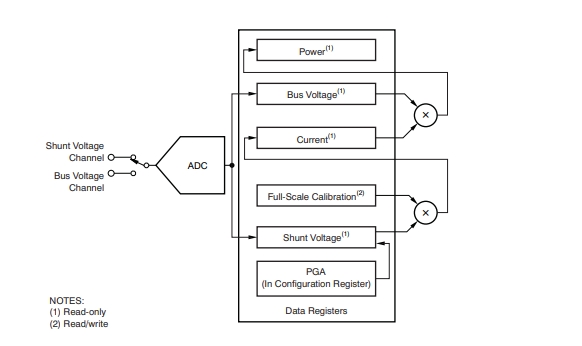

Schematic diagram of INA219AIDR
