ICE3PCS03GXUMA1 parameters and pin diagram

As an agent distributor of Infineon, today TOPCHIP ELECTRONICS Andy will introduce to you an AC-DC voltage regulator from Infineon: ICE3PCS03GXUMA1. This product has a new 8-pin wide-range input controller integrated circuit and is suitable for active CCM power. Factor correction converter.

Compared to the first generation ICE1PCS0x and the second generation ICE2PCS0x, the third generation PFC has the lowest 2.5V trimmed internal reference voltage and an integrated digital control voltage loop. Additional benefits include low peak current limit at 0.2V, adjustable gate switching frequency from 21kHz to 100kHz, and the ability to synchronize with external frequencies from 50kHz to 100kHz. It is also currently capable of achieving 95% efficiency at full load over the entire input voltage range.

 ICE3PCS03GXUMA1 parameters

Brand: Infineon

Product Category: AC-DC Controllers and Voltage Regulators

Package: PG-DSO-8

Packaging: disc

Frequency-switch: 21kHz~250kHz

Working temperature: -25°C~125°C

Installation type: surface mount type

Basic product number: ICE3PCS03

HTSUS: 8542.39.0001

Mode: Continuous Conductive (CCM)

Voltage-power supply: 11V~25V

Current-start: 380μA

Product application: automotive grade

ICE3PCS03GXUMA1 Functional Features

1. High performance: ICE3PCS03GXUMA1 adopts advanced silicon-controlled rectification technology, which has high efficiency and low voltage drop characteristics, and can achieve precise current control at high frequencies.

2. High voltage capability: ICE3PCS03GXUMA1 has high voltage tolerance and can cope with high voltage environments common in the industrial and automotive fields.

3. Built-in protection functions: ICE3PCS03GXUMA1 integrates a variety of protection functions, such as over-current protection, over-temperature protection, over-voltage protection and short-circuit protection, which can effectively protect circuits and external devices.

4. Low power consumption design: ICE3PCS03GXUMA1 adopts low power consumption design, which can reduce system energy consumption and improve overall energy efficiency.

5. High integration: ICE3PCS03GXUMA1 integrates a variety of control circuits and protection functions, reducing the number of external components and system complexity, and improving system reliability.

6. DC modulation function: ICE3PCS03GXUMA1 has a DC modulation function, which can achieve high-efficiency power conversion and improve the response speed and stability of the system.

Application fields of ICE3PCS03GXUMA1

ICE3PCS03GXUMA1 is widely used in the fields of power supplies and switching mode power converters. Specific application areas include but are not limited to the following aspects:

1. Power adapter: ICE3PCS03GXUMA1 can be used in various types of power adapters, including laptop adapters, mobile phone chargers, etc.

2. Power module: This controller can be used in switching power modules and DC-DC converters to generate stable DC voltage output. Common applications include communications equipment, industrial automation, medical equipment, etc.

3. LED lighting driver: ICE3PCS03GXUMA1 can be used in LED lighting drivers to achieve LED brightness adjustment and control. LED lighting is widely used, such as indoor lighting, road lighting, automotive lighting, etc.

4. Battery charger: This controller can be used to design battery chargers, such as lithium battery chargers, polymer battery chargers, etc.

5. Automotive electronics: ICE3PCS03GXUMA1 complies with the relevant standards and requirements of the automotive electronics industry and can be used in the field of automotive electronics, such as vehicle power supplies, electric vehicle chargers, etc.

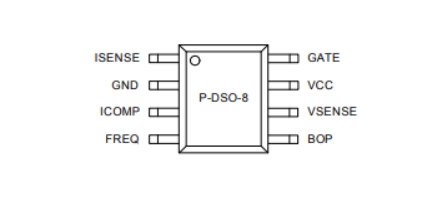

ICE3PCS03GXUMA1 pin diagram

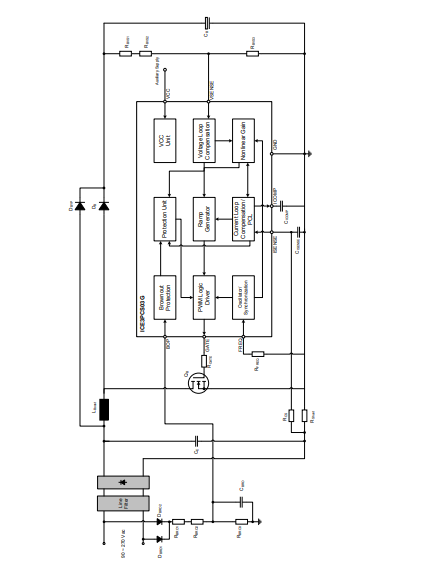

Schematic diagram of ICE3PCS03GXUMA1
