The CA3140EZ is an operational amplifier (Op-Amp) manufactured by Intersil (now Renesas Electronics). The CA3140EZ is a high performance, low noise, single supply operational amplifier with a wide range of applications. It is a classic op amp product that has been on the market for a long time. TOPCHIP ELECTRONICS, which sells a full range of IC electronic components under RENESAS, will provide you with a detailed explanation of the technical parameters, functional features and product application areas of CA3140EZ, with pin diagrams and schematics attached.
Detailed explanation of technical parameters of CA3140EZ
Manufacturer name: Intersil (acquired by RENESAS)
Amplifier Type: Universal
Number of circuits: 1
Output type:-
Slew rate: 9 V/μs
Gain bandwidth product: 4.5MHz
-3db bandwidth:-
Current - Input Bias: 10pA
Voltage - Input Offset: 5mV
Current - Power: 4mA
Current - Output/Channel: 40mA
Voltage - Power supply, single/dual (±): 4 V ~ 36 V, ±2 V ~ 18 V
Working temperature: -55°C ~ 125°C
Mounting type: Through hole
Supplier Device Package: 8-PDIP
CA3140EZ features
1. Single power supply operation: suitable for single power supply system.
2. High input impedance: It has high input impedance and is suitable for applications requiring high input impedance.
3. Low input bias current: Having low input bias current helps reduce bias errors in the circuit.
4. Wide operating voltage range: Able to operate under a wide range of power supply voltages.
5. High gain bandwidth product: With high gain bandwidth product, it is suitable for applications requiring high frequency response.
CA3140EZ application fields
1. Sensor signal conditioning
2. Signal conditioning and processing
3. Voltage follower
4. Filter
5. Instrument amplifier
6. Signal conditioning
7. Voltage comparator

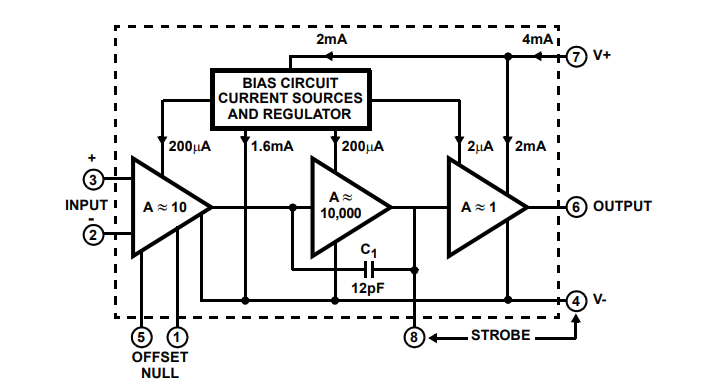

CA3140EZ pin diagram
CA3140EZ schematic diagram
