STM32H747XIH6 is a dual-core microcontroller from STMicroelectronics based on Arm Cortex-M7 and Cortex-M4 cores. TOPCHIP ELECTRONICS, which sells STMicroelectronics' full range of IC electronic components as an agent, will provide you with detailed explanations of STM32H747XIH6 Chinese parameters, functional features and application fields.
Detailed explanation of STM32H747XIH6 parameters
Brand: STMicroelectronics
Product Family: Embedded - Microcontrollers
Packaging: Pallet
Series: STM32H7
Part status: active
Core processor: ARM? Cortex?-M4, Cortex?-M7
Core specifications: 32-bit dual core
Speed: 240MHz, 480MHz
Connectivity: CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Peripherals: Undervoltage detection/reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/Os: 168
Program storage capacity: 2MB (2M x 8)
Program memory type: Flash
EEPROM capacity:-
RAM size: 1M x 8
Voltage-power supply (Vcc/Vdd): 1.62V ~ 3.6V
Data converter: A/D 36x16b; D/A 2x12b
Oscillator type: Internal
Working temperature: -40°C ~ 85°C (TA)
Installation type: surface mount type
Product package: 265-TFBGA
STM32H747XIH6 features
- Dual-core architecture: Integrated Cortex-M7 and Cortex-M4 cores to provide high-performance computing power and flexible application processing capabilities.
- Rich peripherals: including multiple universal timers, communication interfaces (such as SPI, I2C, UART, etc.), Ethernet controller, USB interface, etc., to meet the needs of various applications.
- High-performance computing: With high-speed clock frequency and rich memory interfaces, it can support complex algorithms and data processing.
- Low-power design: Using advanced low-power technology, it can provide high-performance computing power with limited power consumption.
STM32H747XIH6 application areas
The STM32H747XIH6 microcontroller is suitable for a variety of applications, including but not limited to:
- Industrial automation: used in industrial control systems, robot control, sensor data processing, etc.
- Automotive electronics: can be used in vehicle infotainment systems, body control modules, driving assistance systems, etc.
- Smart grid: suitable for smart meters, power monitoring systems, energy management and other fields.
- Medical equipment: used for medical image processing, vital signs monitoring, medical equipment control and other applications.

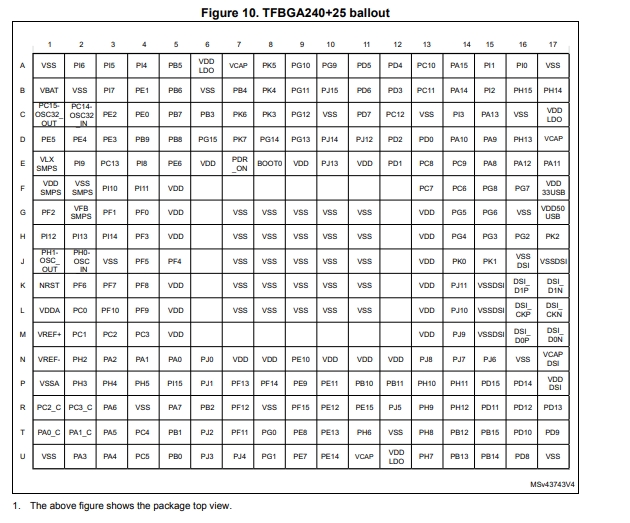

Pin diagram of STM32H747XIH6
