AD623ARZ is a high-precision, low-cost instrument amplifier (Instrumentation Amplifier) from Analog Devices (ADI). It is mainly used to amplify weak signals and provide precise amplification. This device is designed for use in a variety of applications requiring high gain and precision amplification. TOPCHIP ELECTRONICS, a supplier that sells a full range of IC electronic components under ADI (Analog Devices) Semiconductor, will provide you with AD623ARZ technical parameters, functional features and application areas, with pin diagrams and schematics attached.
Detailed explanation of AD623ARZ technical parameters:
Manufacturer product model: AD623ARZ
Manufacturer: Analog Devices Inc.
Description: IC INST AMP 1 CIRCUIT 8SOIC
Product Family: Linear Devices - Amplifiers - Instruments, Operational Amplifiers, Buffer Amplifiers
Packaging: pipe fittings
series:-
Part status: active
Amplifier Type: Meter
Number of circuits: 1
Output type: rail-to-rail
Slew rate: 0.3V/μs
Gain bandwidth product: -
-3db bandwidth: 800kHz
Current - Input Bias: 17nA
Voltage-input compensation: 25μV
Current - Supply: 375μA
Current - Output/Channel: -
Voltage - power supply, single/dual? (±): 2.7V ~ 12V, ± 2.5V ~ 6V
Working temperature: -40°C ~ 85°C
Installation type: surface mount type
Product package: 8-SOIC (0.154, 3.90mm wide)
AD623ARZ features
1. High gain accuracy
2. Low input bias current
3. Low input bias voltage
4. Wide input voltage range
5. Single or dual power supply
AD623ARZ application fields
1. Medical equipment
2. Industrial automation
3. Instrumentation
4. Sensor interface
5. Power monitoring

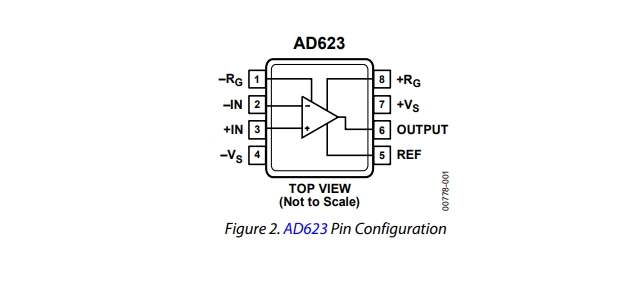

AD623ARZ pin diagram

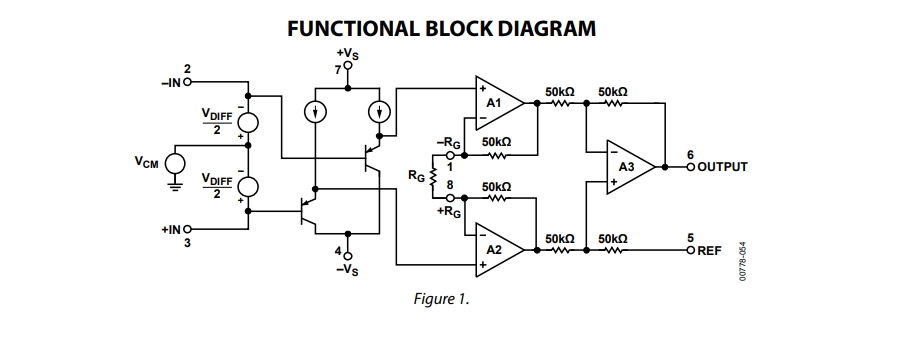

AD623ARZ schematic diagram
