The ADS1115IDGSR is a high-performance 16-bit analog-to-digital converter from Texas Instruments with a built-in voltage reference and programmable gain amplifier. It can communicate with a microcontroller or other digital device via an I2C interface. The chip excels in accuracy, sensitivity and low power consumption, making it suitable for a variety of precision measurement and sensor interface applications. TOPCHIP ELECTRONICS, a full range of IC electronic components supplier under Texas Instruments, will provide you with detailed explanation of ADS1115IDGSR parameters, functional features, application areas and pin diagrams.
Detailed explanation of ADS1115IDGSR parameters
Brand: Texas Instruments
Product Family: Data Acquisition - Analog-to-Digital Converters (ADCs)
Part status: active
Number of digits: 16
Sample rate (per second): 860
Number of inputs: 2, 4
Input type: Differential, single-ended
Data interface: I2C
Configuration:MUX-PGA-ADC
Number of A/D converters: 1
Architecture: Trigonometric Calculus
Reference type: internal
Voltage - power supply, analog: 2V ~ 5.5V
Voltage - power supply, digital: 2V ~ 5.5V
Features: PGA, optional address
Working temperature: -40°C ~ 125°C
Standard packaging: 2500 pieces/disk
Package: VSSOP-10
ADS1115IDGSR features
- 16-bit precision ADC: Provides high-resolution analog signal conversion capabilities.
- Built-in voltage reference: reduces the need for external components and simplifies design.
- Programmable gain amplifier: allows the user to adjust the gain of the input signal to adapt to different measurement ranges.
- Low power consumption: suitable for battery-powered or applications with strict power consumption requirements.
- Internal comparator: can be used to implement simple triggering and alarm functions.
- I2C interface: Conveniently communicate and control with digital devices such as microcontrollers.
ADS1115IDGSR application fields
- Sensor interface: used to connect and read analog signals output by various sensors, such as temperature sensors, pressure sensors, etc.
- Instrumentation: used for precision measurement and data collection, such as multi-channel data acquisition systems, instruments and meters, etc.
- Industrial automation: used for precision measurement and control in factory automation systems.
- Medical equipment: used for biosignal measurement and data acquisition in medical equipment.
- Consumer electronics: used in smart homes, smart wearable devices and other products that require precision sensor interfaces.

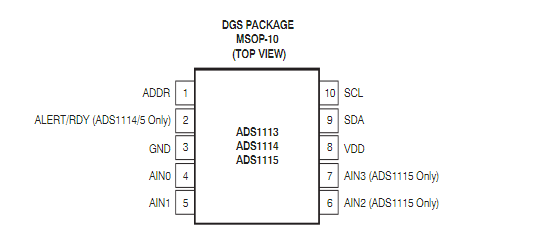

ADS1115IDGSR pin diagram
