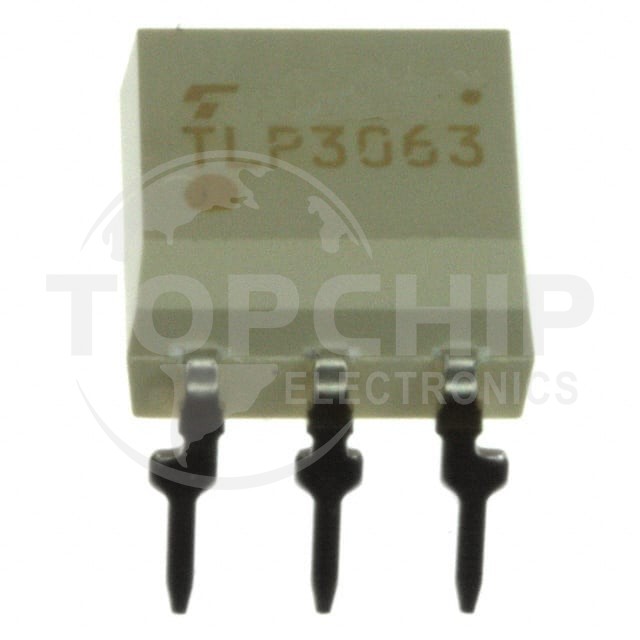

TLP3063SCF Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Output Type:Triac
• Zero Crossing Circuit:Yes
• Number of Channels:1
• Voltage - Isolation:5000Vrms
• Voltage - Off State:600 V
• Static dV/dt (Min):200V/µs
• Current - LED Trigger (Ift) (Max):5mA
• Current - On State (It (RMS)) (Max):100 mA
• Current - Hold (Ih):600µA (Typ)
• Turn On Time:-
• Voltage - Forward (Vf) (Typ):1.15V
• Current - DC Forward (If) (Max):50 mA
• Operating Temperature:-40°C ~ 100°C
• Mounting Type:Through Hole
• Package / Case:6-DIP (0.300", 7.62mm), 5 Leads
• Supplier Device Package:6-DIP (Cut), 5 Lead
• Approval Agency:BSI, SEMKO, UR
