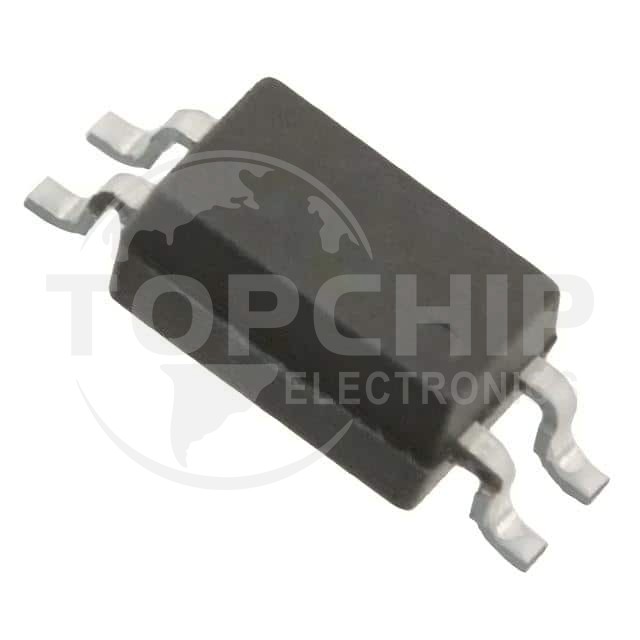

PS2801-1-Y-A Specifications

• Series:-
• Package:Tube
• Part Status:Discontinued at Digi-Key
• Number of Channels:1
• Voltage - Isolation:2500Vrms
• Current Transfer Ratio (Min):80% @ 5mA
• Current Transfer Ratio (Max):600% @ 5mA
• Turn On / Turn Off Time (Typ):6µs, 5µs
• Rise / Fall Time (Typ):3µs, 5µs
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):80V
• Current - Output / Channel:50mA
• Voltage - Forward (Vf) (Typ):1.1V
• Current - DC Forward (If) (Max):50 mA
• Vce Saturation (Max):300mV
• Operating Temperature:-55°C ~ 100°C
• Mounting Type:Surface Mount
• Package / Case:4-SOIC (0.173", 4.40mm Width)
• Supplier Device Package:4-SSOP
