JANTX4N47A Specifications

• Series:-
• Package:Bulk
• Part Status:Obsolete
• Number of Channels:1
• Voltage - Isolation:1000VDC
• Current Transfer Ratio (Min):50% @ 1mA
• Current Transfer Ratio (Max):-
• Turn On / Turn Off Time (Typ):-
• Rise / Fall Time (Typ):20µs, 20µs (Max)
• Input Type:DC
• Output Type:Transistor with Base
• Voltage - Output (Max):40V
• Current - Output / Channel:50mA
• Voltage - Forward (Vf) (Typ):1.5V (Max)
• Current - DC Forward (If) (Max):40 mA
• Vce Saturation (Max):300mV
• Operating Temperature:-55°C ~ 125°C
• Mounting Type:Through Hole

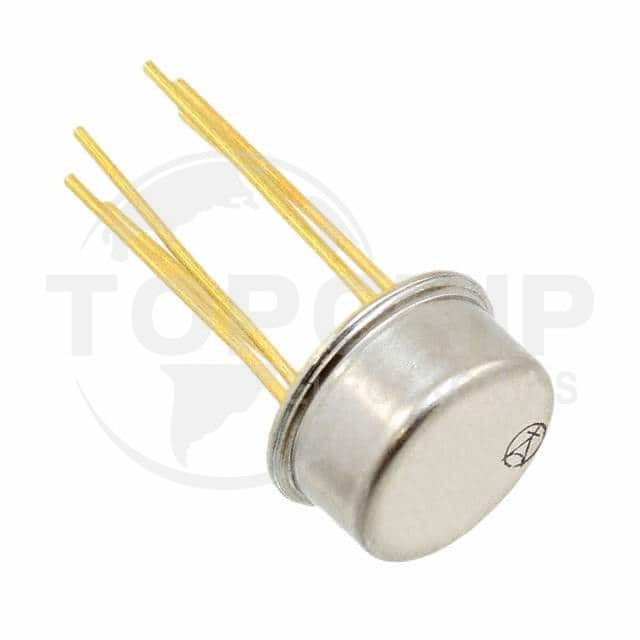

• Package / Case:TO-78-6 Metal Can
• Supplier Device Package:TO-78-6
