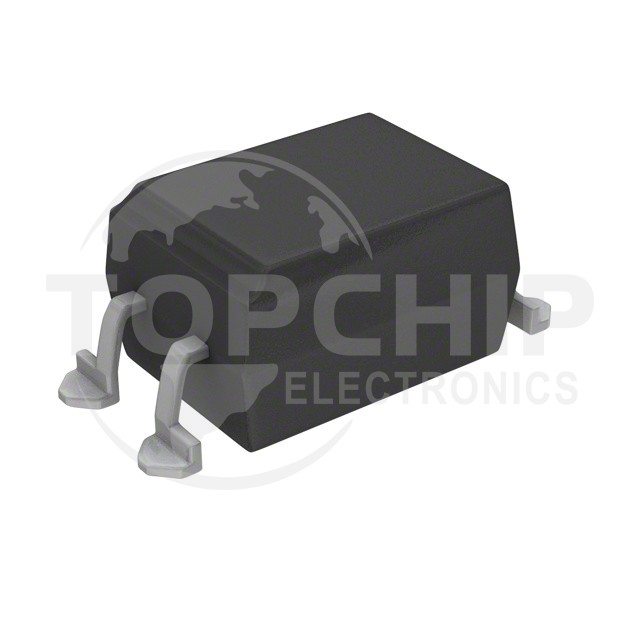

PC3H7AJ0000F Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Discontinued at Digi-Key
• Number of Channels:1
• Voltage - Isolation:2500Vrms
• Current Transfer Ratio (Min):35% @ 1mA
• Current Transfer Ratio (Max):70% @ 1mA
• Turn On / Turn Off Time (Typ):-
• Rise / Fall Time (Typ):4µs, 3µs
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):80V
• Current - Output / Channel:50mA
• Voltage - Forward (Vf) (Typ):1.2V
• Current - DC Forward (If) (Max):50 mA
• Vce Saturation (Max):200mV
• Operating Temperature:-30°C ~ 100°C
• Mounting Type:Surface Mount
• Package / Case:4-SOIC (0.173", 4.40mm Width)
• Supplier Device Package:4-Mini-Flat
