STG3699QTR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:4
• On-State Resistance (Max):500mOhm
• Channel-to-Channel Matching (ΔRon):60mOhm
• Voltage - Supply, Single (V+):1.65V ~ 4.3V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):50ns, 30ns
• -3db Bandwidth:50MHz
• Charge Injection:35pC
• Channel Capacitance (CS(off), CD(off)):5pF
• Current - Leakage (IS(off)) (Max):10nA
• Crosstalk:-54dB @ 100kHz
• Operating Temperature:-55°C ~ 125°C (TA)
• Mounting Type:Surface Mount

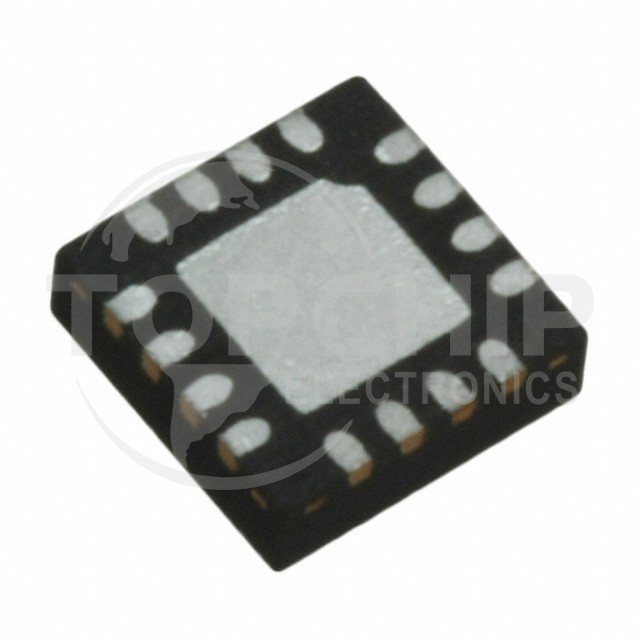

• Package / Case:16-VFQFN Exposed Pad
• Supplier Device Package:16-QFN (3x3)
