DG9424DQ-T1-E3 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):3Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):3V ~ 16V
• Voltage - Supply, Dual (V±):±3V ~ 8V
• Switch Time (Ton, Toff) (Max):51ns, 35ns
• -3db Bandwidth:-
• Charge Injection:38pC
• Channel Capacitance (CS(off), CD(off)):49pF, 37pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-77dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

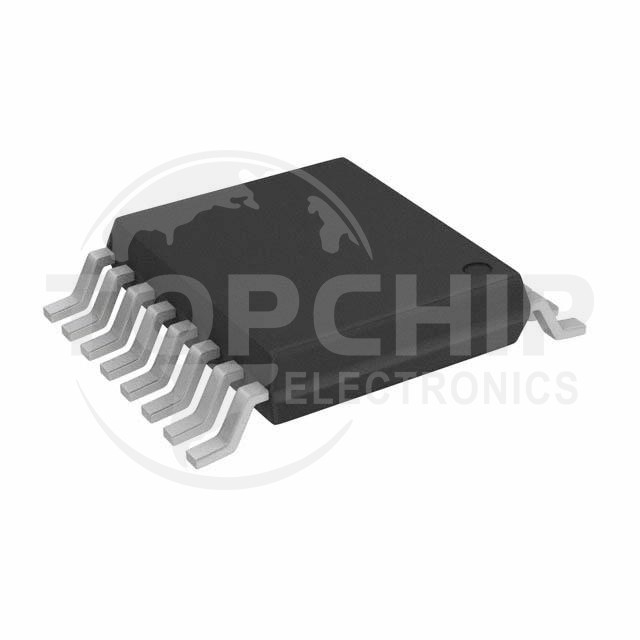

• Package / Case:16-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:16-TSSOP
