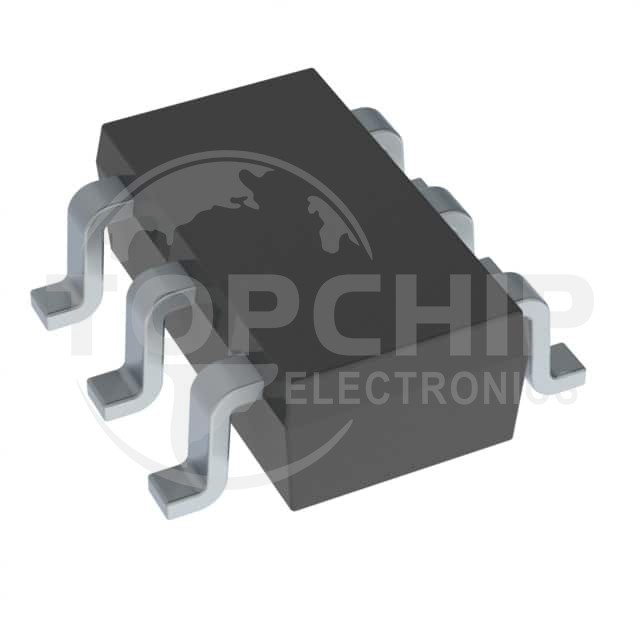

DG9431DY-T1-E3 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):30Ohm
• Channel-to-Channel Matching (ΔRon):400mOhm
• Voltage - Supply, Single (V+):2.7V ~ 5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):75ns, 50ns
• -3db Bandwidth:-
• Charge Injection:2pC
• Channel Capacitance (CS(off), CD(off)):7pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:8-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:8-SOIC
