STMUX3040QTTR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:8
• On-State Resistance (Max):8Ohm
• Channel-to-Channel Matching (ΔRon):500mOhm
• Voltage - Supply, Single (V+):1.65V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):9ns, 8.5ns
• -3db Bandwidth:1.3GHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):4pF
• Current - Leakage (IS(off)) (Max):-
• Crosstalk:-30dB @ 300MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

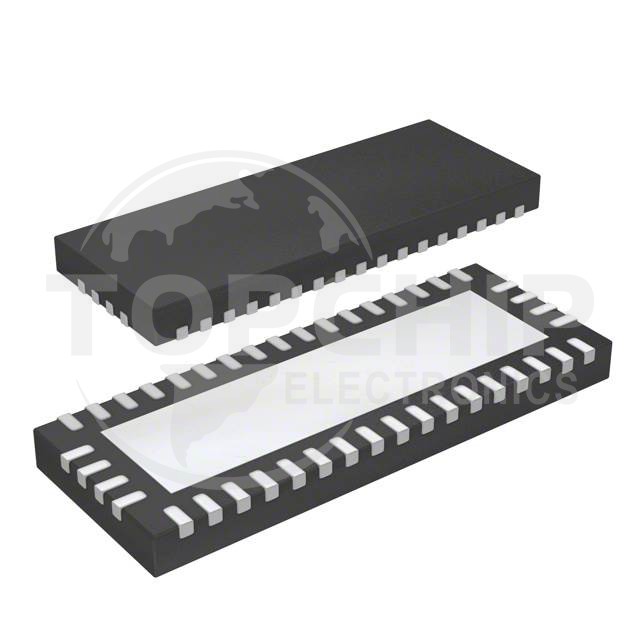

• Package / Case:42-TQFN
• Supplier Device Package:42-TQFN-EP (3.5x9)
