STG4158BJR Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):600mOhm (Typ)
• Channel-to-Channel Matching (ΔRon):10mOhm
• Voltage - Supply, Single (V+):1.65V ~ 4.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):28ns, 13ns
• -3db Bandwidth:40MHz
• Charge Injection:230pC
• Channel Capacitance (CS(off), CD(off)):30pF
• Current - Leakage (IS(off)) (Max):30nA
• Crosstalk:-61dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

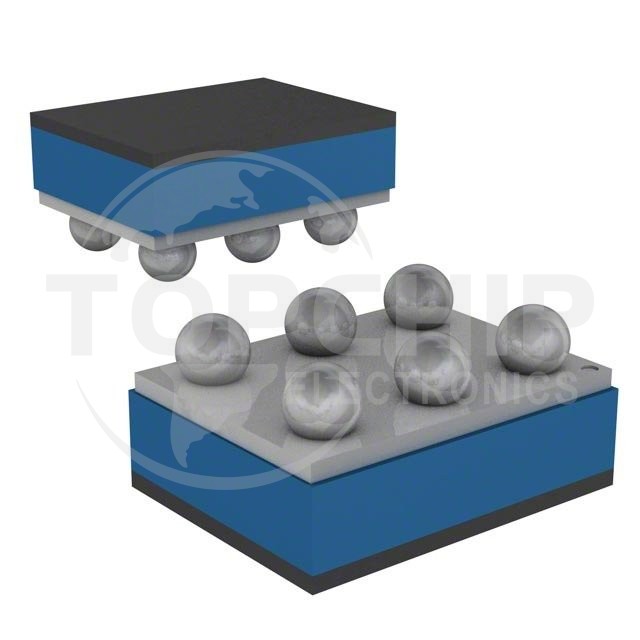

• Package / Case:6-WFBGA, FCBGA
• Supplier Device Package:6-FlipChip (1.23x0.83)
