ADG506AKP-REEL Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:16:1
• Number of Circuits:1
• On-State Resistance (Max):300Ohm
• Channel-to-Channel Matching (ΔRon):15Ohm
• Voltage - Supply, Single (V+):10.8V ~ 16.5V
• Voltage - Supply, Dual (V±):±10.8V ~ 16.5V
• Switch Time (Ton, Toff) (Max):300ns, 300ns
• -3db Bandwidth:-
• Charge Injection:4pC
• Channel Capacitance (CS(off), CD(off)):5pF, 44pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

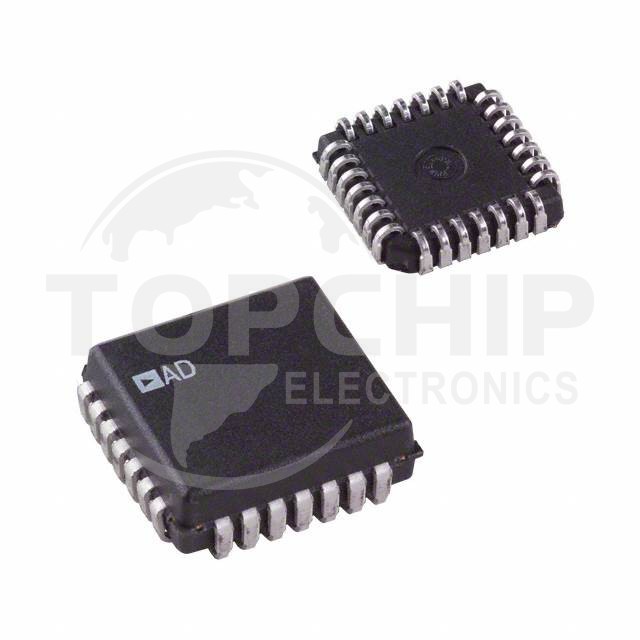

• Package / Case:28-LCC (J-Lead)
• Supplier Device Package:28-PLCC (11.51x11.51)
