DG3157ADN-T1-E4 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):15Ohm
• Channel-to-Channel Matching (ΔRon):800mOhm
• Voltage - Supply, Single (V+):1.65V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):25ns, 21ns
• -3db Bandwidth:300MHz
• Charge Injection:7pC
• Channel Capacitance (CS(off), CD(off)):7pF
• Current - Leakage (IS(off)) (Max):1µA
• Crosstalk:-64dB @ 10MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

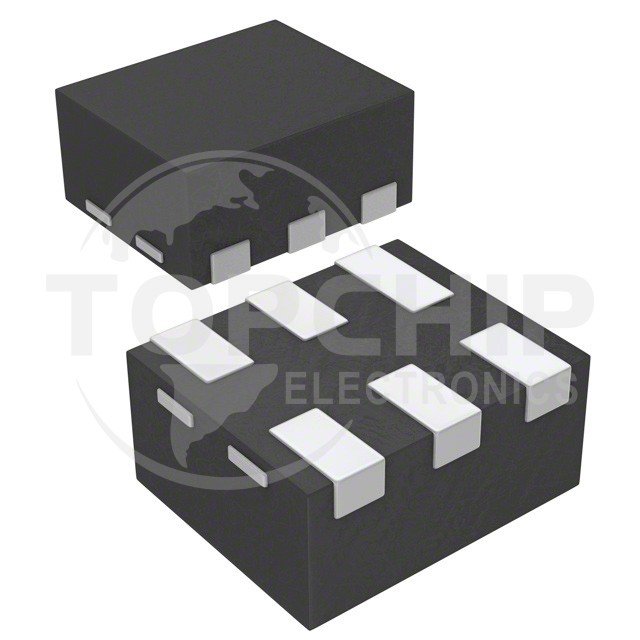

• Package / Case:6-UFDFN
• Supplier Device Package:6-miniQFN
