ISL43L420IR-T Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:4
• On-State Resistance (Max):450Ohm
• Channel-to-Channel Matching (ΔRon):50mOhm
• Voltage - Supply, Single (V+):1.1V ~ 4.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):13ns, 10ns
• -3db Bandwidth:-
• Charge Injection:-120pC
• Channel Capacitance (CS(off), CD(off)):106pF
• Current - Leakage (IS(off)) (Max):50nA
• Crosstalk:-98dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

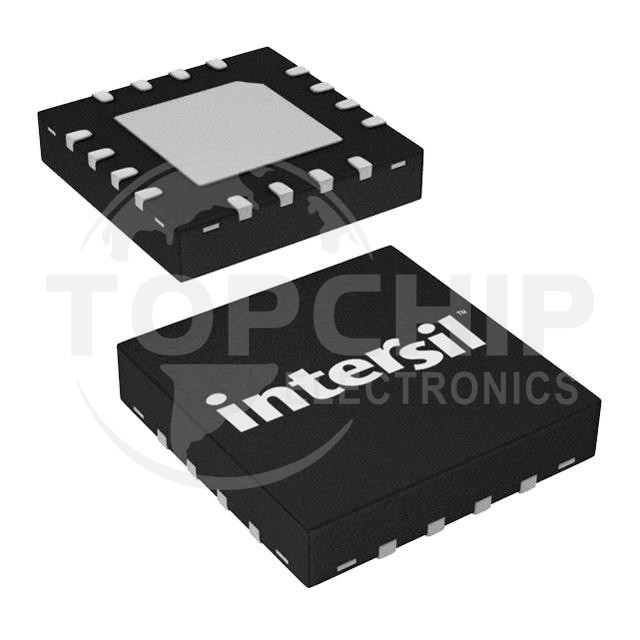

• Package / Case:16-VFQFN Exposed Pad
• Supplier Device Package:16-QFN (3x3)
