ISL43144IR Specifications

• Series:-
• Package:Tube
• Part Status:Obsolete
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:4
• On-State Resistance (Max):25Ohm
• Channel-to-Channel Matching (ΔRon):500mOhm
• Voltage - Supply, Single (V+):2.7V ~ 12V
• Voltage - Supply, Dual (V±):±2.6V ~ 6V
• Switch Time (Ton, Toff) (Max):65ns, 50ns
• -3db Bandwidth:-
• Charge Injection:5pC (Max)
• Channel Capacitance (CS(off), CD(off)):10pF, 26pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-89dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

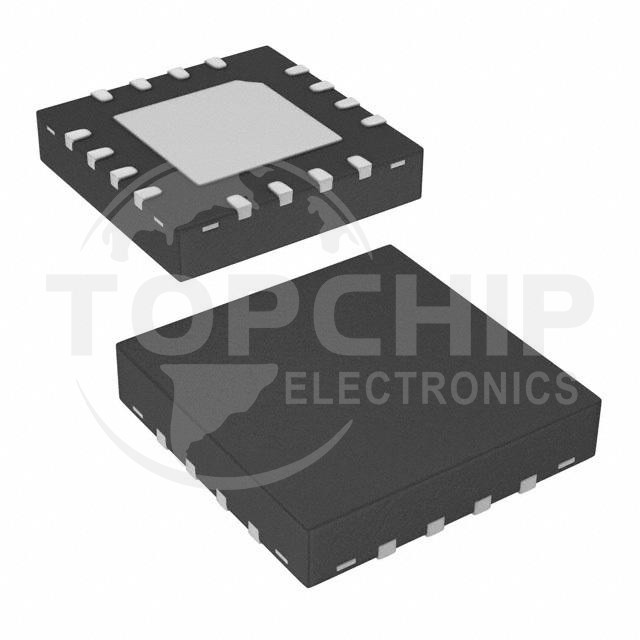

• Package / Case:16-VQFN Exposed Pad
• Supplier Device Package:16-QFN (4x4)
