TLE4274G V50 Specifications

• Series:Automotive, AEC-Q100, OPTIREG™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):40V
• Voltage - Output (Min/Fixed):5V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.5V @ 250mA
• Current - Output:400mA
• Current - Quiescent (Iq):220 µA
• Current - Supply (Max):30 mA
• PSRR:60dB (100Hz)
• Control Features:-
• Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
• Operating Temperature:-40°C ~ 150°C
• Mounting Type:Surface Mount

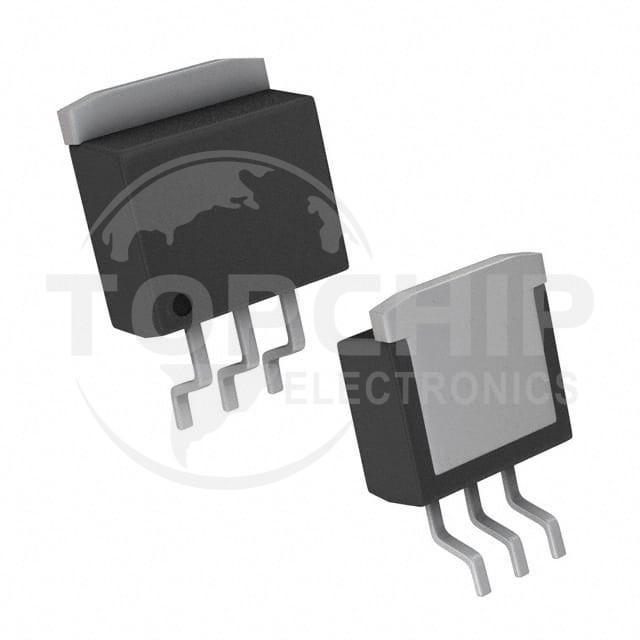

• Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
• Supplier Device Package:PG-TO263-3-1
