SMS18RE3S6

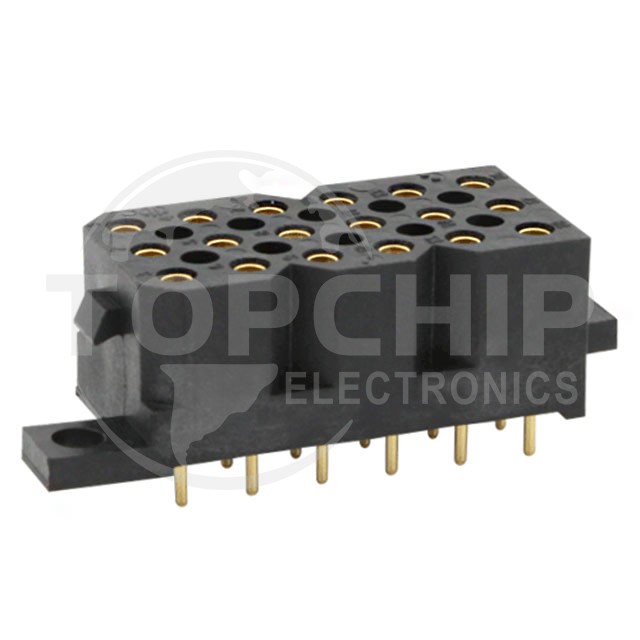

Image is for reference, please contact us to get the real picture

Manufacturer Part
SMS18RE3S6
Manufacturer
Souriau-Sunbank by Eaton
Description
CONN RCPT 18POS 0.2 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
0
Datasheets
-

SMS18RE3S6 Specifications

  • Series:SMS
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:18
  • Number of Positions Loaded:All
  • Pitch - Mating:0.200" (5.08mm)
  • Number of Rows:6
  • Row Spacing - Mating:0.200" (5.08mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Insulation Color:Black
  • Insulation Height:0.528" (13.40mm)
  • Contact Length - Post:0.173" (4.40mm)
  • Operating Temperature:-55°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:IP40
  • Features:Mounting Flange
  • Current Rating (Amps):5A
  • Voltage Rating:-
