AWH16A-0222-T-R

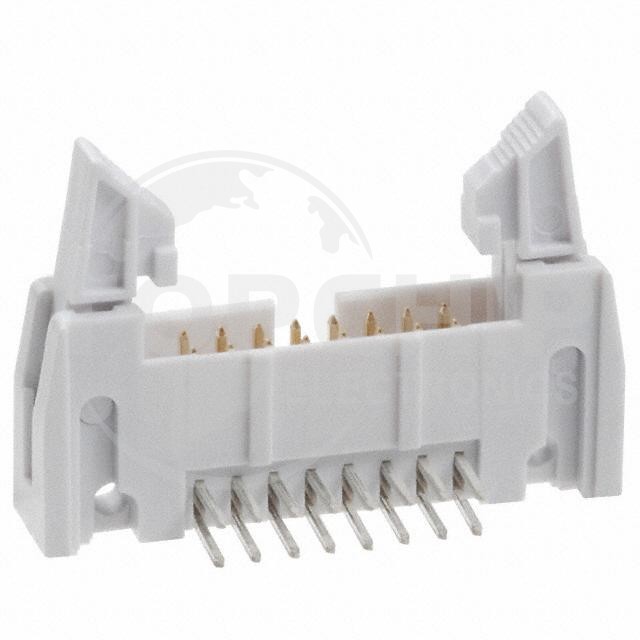

Image is for reference, please contact us to get the real picture

Manufacturer Part
AWH16A-0222-T-R
Manufacturer
ASSMANN WSW Components
Description
CONN HEADER R/A 16POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
0
Datasheets
-

AWH16A-0222-T-R Specifications

  • Series:-
  • Package:Tray
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Short
  • Contact Length - Mating:-
  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.669" (17.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Keying Slot
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):3A
  • Voltage Rating:-
