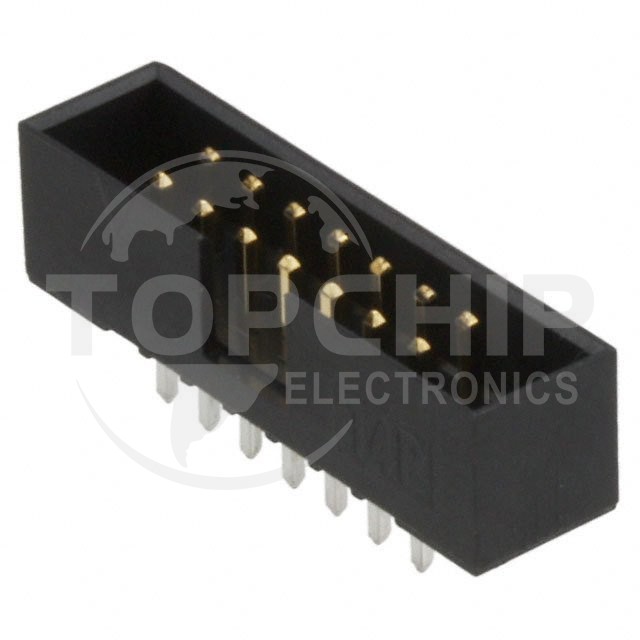

AWHW2-14G-0202-T-R Specifications

• Series:-
• Package:Tray
• Part Status:Obsolete
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:14
• Number of Rows:2
• Row Spacing - Mating:0.079" (2.00mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.157" (4.00mm)
• Contact Length - Post:0.110" (2.79mm)
• Overall Contact Length:-
• Insulation Height:0.226" (5.74mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:Flash
• Contact Finish - Post:-
• Contact Material:Brass
• Insulation Material:Polyamide (PA9T), Nylon 9T, Glass Filled
• Features:Keying Slot
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):1.5A
• Voltage Rating:-
