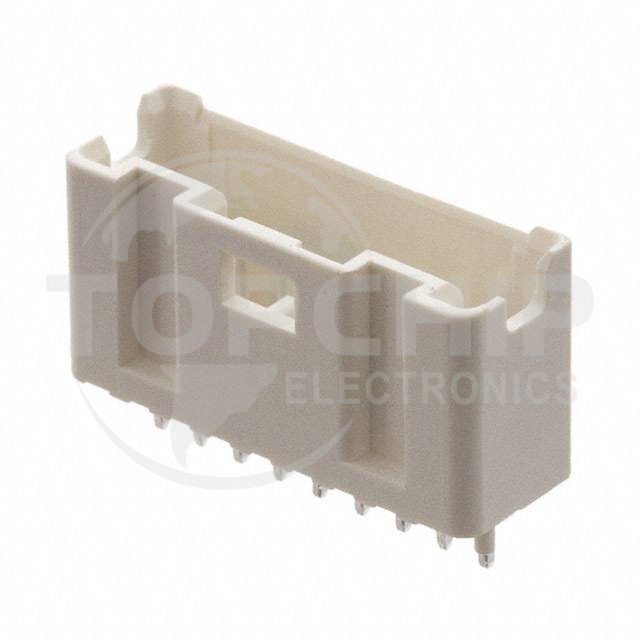

B09B-PNISK-1A (LF)(SN) (F) Specifications

• Series:PNI
• Package:Tray
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:9
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Press-Fit, Solder
• Fastening Type:Latch Lock
• Contact Length - Mating:-
• Contact Length - Post:0.134" (3.40mm)
• Overall Contact Length:-
• Insulation Height:0.402" (10.20mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
• Features:Board Guide
• Operating Temperature:-25°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):3A
• Voltage Rating:100V
