STPS30M80CR

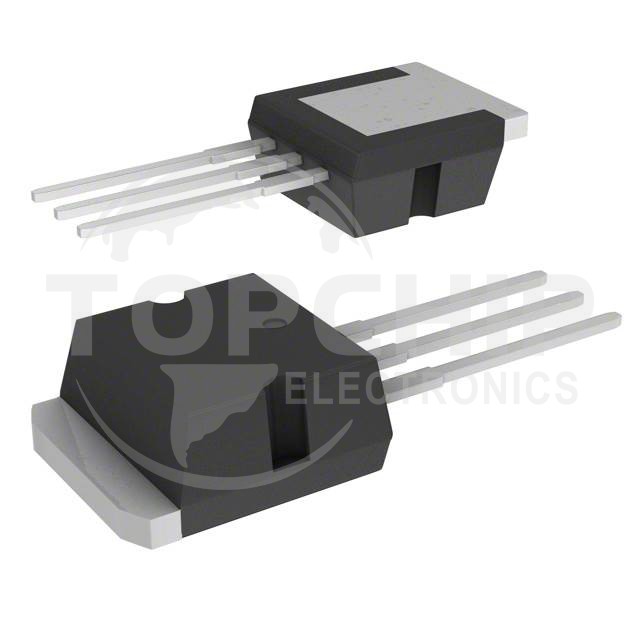

Image is for reference, please contact us to get the real picture

Manufacturer Part
STPS30M80CR
Manufacturer
STMicroelectronics
Description
DIODE ARRAY SCHOTTKY 80V I2PAK
Category
Discrete Semiconductor Products
Family
Diodes - Rectifiers - Arrays
Series
-
In Stock
0
Datasheets
-

STPS30M80CR Specifications

  • Series:-
  • Package:Tube
  • Part Status:Obsolete
  • Diode Configuration:1 Pair Common Cathode
  • Diode Type:Schottky
  • Voltage - DC Reverse (Vr) (Max):80 V
  • Current - Average Rectified (Io) (per Diode):15A
  • Voltage - Forward (Vf) (Max) @ If:745 mV @ 15 A
  • Speed:Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr):-
  • Current - Reverse Leakage @ Vr:40 µA @ 80 V
  • Operating Temperature - Junction:175°C (Max)
  • Mounting Type:Through Hole
  • Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
  • Supplier Device Package:I2PAK
